Reinforced wall-mounted distribution cabinet SHRNu-7U-450

Telecom Equipment Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

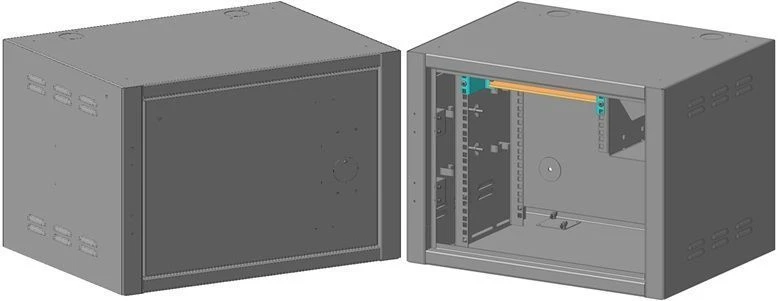

ShRNu-7U-450. Wall-mounted distribution cabinet reinforced, size 19" - 6U, overall dimensions ????????=530x300x300.
The product is a wall-mounted vandal-proof telecommunication cabinet designed to accommodate equipment of subscriber access node, as well as other active telecommunication equipment or in-house technical means of security systems, control and management of engineering equipment and resource consumption metering. The product is located in entrances of houses, other technical and non-residential premises of small area.
The cabinet door has concealed hinges with no access to the hinge elements from the outside and impossibility to remove the door from the hinges by "pushing". Rigel lock with 3-point locking. The construction of the cabinet door has a removable design.

Specifications

Type of accommodation indoor hinged

Height, U 7

Operating temperature range 0...40 °C

Device type Reinforced wall-mounted distribution cabinet

Depth 450 mm

Protection class IP31

Weight 20 kg

Height 440 mm

Width 600 mm

Availability of fasteners to the support (pole) Armoured glass

Type of accommodation In the room for surface mounting

Type of construction All-welded

Height , U 7

Usable depth 450 mm

First characteristic digit of the degree of protection designation 3

Second characteristic digit of the degree of protection designation 1

Type of floor support no

Type of coloring Powder

RAL color 7035

Material Cold-rolled steel

Material thickness 1.5 mm

Upper limit of operating temperature 40 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
