Rehabilitation suspension for verticalisation of the patient "Ortorent", in variants of execution. Model "Ortorent C + paediatri

Therapeutic Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

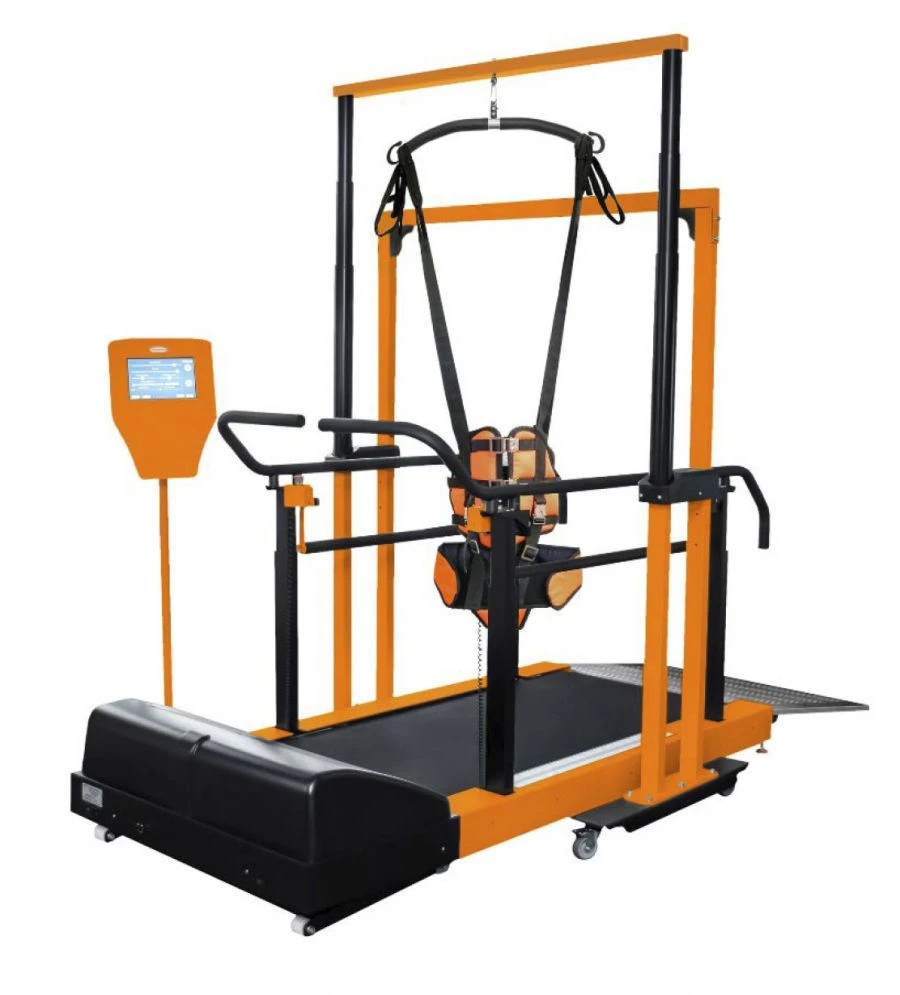

The rehabilitation suspension for verticalisation of the patient "Orthorent", designed to lift and support the patient for the purpose of transfer or training with adjustable load on the lower limbs.
The suspension can be used for rehabilitation after injuries, for rehabilitation after strokes, for joint diseases of the limbs and for diseases accompanied by muscle weakness and movement coordination disorders.
Scope of application: in the conditions of medical and preventive institutions: in the conditions of gymnastic and rehabilitation halls, rooms for LFK and AFK; as well as at home..

Technical Specifications

Equipment	Rehabilitation suspension for verticalisation of the patient "Ortorent", in variants of execution. Model "Ortorent C + children (stationary with treadmill)"; 2-button control panel; Set of fasteners (complete set).
Treadmill dimensions (without ramp) (WxDxH)	1800 mm
Treadmill dimensions (without ramp) (WxDxH)	1045 mm
Overall dimensions of the treadmill (with ramp)	2600 mm
Overall dimensions in working condition of the suspension with treadmill and patient entry ramp (WxDxH)	2600 mm
Working size of the treadmill (WxD)	1355 mm
Distance between running board handrails	445...720 mm
Height adjustment range of side rails	500 mm
Height of side handrails from the track surface	680...1180 mm
Height of additional handrails from the track surface	465...605 mm
Diameter of treadmill handrails	40 mm
Minimum thickness of treadmill deck	21 mm
Diameter of transport rollers (wheels) integrated into the base of the track for easy movement	45 mm
Changing the treadmill inclination angle	0...7
Treadmill weight	142 kg
Ramp weight	9.5 kg
Maximum patient weight	150 kg
Treadmill speed in the range	0.1...13
Increasing the speed of the treadmill step by step	0.1
Treadmill power consumption	1100 W
Treadmill cushioning system - number of elastomers	8 pc
Electrically adjustable treadmill handrails for patient support	2 pc
Overall dimensions of the hanger (WxDxH)	1900 mm
Internal distance between suspension struts	1030 mm
Distance between suspension handrails	790...870 mm
Transport castors (wheels) integrated in the base of the hanger for easy handling	4 pc
Diameter of transport rollers (wheels)	75 mm
Suspension weight	70 kg
Patient height from gender	800...1600 mm
Electric suspension lift actuator	2 pc
Maximum power of each suspension drive	800
Suspension power consumption	300 W
Time required to move from the lowest to the highest position with maximum permissible load	30
Minimum continuous operation	8
Minimum distance between where the handrail is gripped by the hand and any other structural element	45 mm
Maximum time for setting the operating mode	3
Treadmill display diagonal	10.1
Biofeedback system via sensors that synchronise the treadmill to the patient's stride.	availability

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
