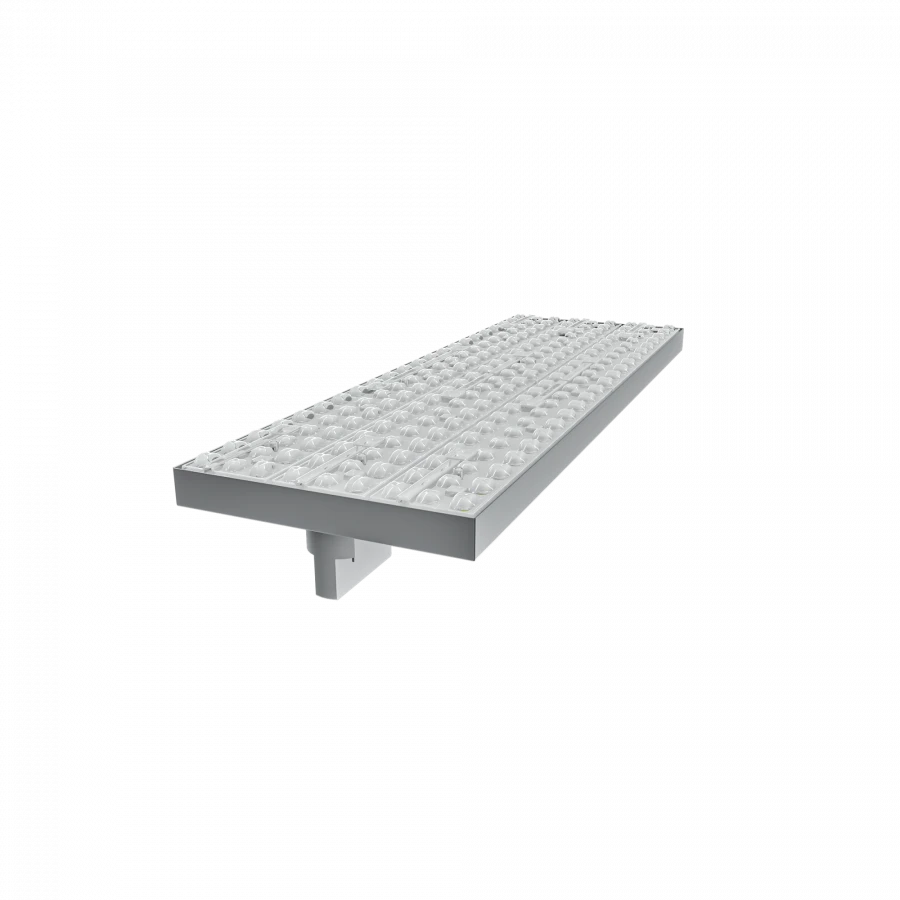

Rectangular LED Track Light Series LSR for General Illumination

LED Ceiling & Wall Lights

Manufacturer:SIDECO LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Track rectangular luminaire designed for general lighting of commercial, administrative, public and industrial premises. It is installed on the busbar. Body material: aluminium provides quality heat dissipation and extends the life of the luminaire.

Material of the diffuser: optical polycarbonate. Colour: white, black, grey to order any RAL colour. Degree of protection: IP40.

Climatic design: UHLZ.1. Various angles of light flux disclosure (PI96x55/90X80/104x90/88x35/90x155/90X20). Installation of emergency power supply unit (EPS) is possible.

Specifications

Type of lamps (LED, incandescent, fluorescent)

LED

Type of supply current

Power factor

0.98

Upper operating temperature value

40 °C

IK code

Type of explosion protection

Type of emergency luminaire

Option

Net weight

4 kg

Protection class against electric current

Degree of protection (IP)

Degree of protection

Light distribution class

Type of luminaire

Rectangular

Brightness limitation category

limited

Color temperature (K)

2700...5700 K

Weight

4 kg

Optical element material

Optical polycarbonate

Climatic execution (according to GOST 15150-69)

UHL4

Color rendering index (CRI)

80...90

Mounting type

Busbar, bracket

Housing material

Aluminum

Width

130 mm

Length

630 mm

Luminous flux, lm

4800...11000 lm

Height

50...100 mm

Correlating color temperature (CCT)

2700...5700 K

Power consumption, W

40...75 W

PROTECTION CLASS AGAINST ELECTRIC CURRENT

Ripple factor, less than or equal to

1 %

Color rendering index (Ra), greater than or equal to

80-90

Power consumption

40...75 W

Degree of protection against dust and moisture (according to GOST R IEC 60598-1-2011)

Power factor, greater than or equal to

0.98

Double angle half brightness

120

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
