Available for Import

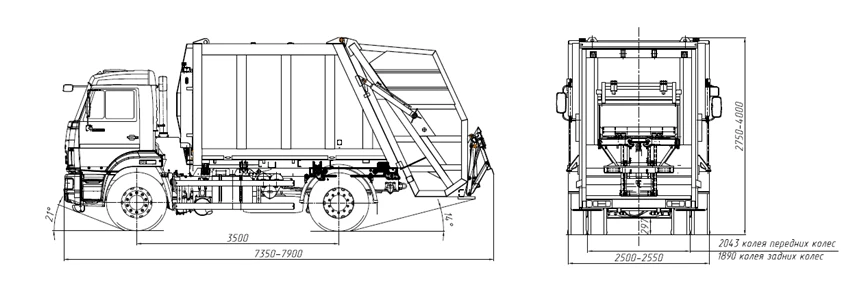

Rear-loading rubbish truck KM-7028-80 on KAMAZ 43255 chassis with 43255-G5 modification.
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
- rubbish truck body with side loading device for collection of municipal solid waste (MSW) from containers, as well as manual collection of MSW, its compaction, transportation and mechanised unloading in places of neutralisation and disposal
Specifications
Hopper capacity
12...16
Wheel arrangement
4x2/rear
Machine type
7028?2
Engine type
Four-stroke diesel engine
Type of product according to PP RF 616
Garbage trucks
Type of garbage truck equipment
garbage truck body with side loading device
Base chassis type
KAMAZ 43255
MSW compression ratio for the garbage truck
Up to 10
Vehicle kerb weight
8800...11700 kg
Front/rear wheel track
2043 / 1890 mm
Base
3500 mm
Vehicle height
2750...4000 mm
Vehicle width
2500...2550 mm
Vehicle length
7350...7900 mm
Steering mechanism (type)
"screw - ball nut - rail - sector"
Technically permissible maximum front axle weight
6000 kg
Technically permissible maximum mass of the vehicle
15500 kg
Vehicle equipment
maximum speed limiter (the function of the maximum speed limiter is performed by the electronic engine control unit), emergency call device with automatic activation in case of rollover on request:
Brake systems auxiliary
retarder
Parking brake systems
drive from spring energy accumulators to rear axle wheel brakes
Brake systems spare
each service brake system circuit
Brake systems working
pneumatic double-circuit drive with division into circuits on the front axle and rear axle, with ABS; brakes of all wheels - drum brakes
Steering (description)
Power assisted
Rear suspension (description)
dependent, leaf spring, with hydraulic telescopic shock absorbers, with transverse stability stabilizer (for 43253-G5, 43255-G5, 53605-??)
Front suspension (description)
dependent, leaf spring, with hydraulic telescopic shock absorbers with transverse stability stabilizer (for 53605-???) or without it (for 43253-G5, 43255-G5)
Transmission (make, type)
ZF, 6S1000TO, with manual control
Clutch (brand, type)
ZF&SACHS or DONMEZ or Changchun Yidong Clutch, MF 395, MFZ-430, dry, single plate
Transmission
mechanical
Silencers (marking) - 1 stage
Cummins, 4378042 (A051E058) - for 4325?-G5, 53605-A5 Cummins, 4378057 (A051K628) - for 4325?-G5, 53605-A5 Cummins, 5418406 (A059K501) or 5418404 (A059K499) - for 53605-5H
Neutralizers (marking) - 1 stage
integrated with the silencer
Exhaust gas exhaust and neutralization system
one silencer; exhaust gas neutralization system
Air filter (type, marking)
PV728.1109510 or 45,700 92,941 (for 43253-G5, 43255-G5); PV725.1109510 (for 53605-A5, 53605-5H); AH193344V or Fleetguard OptiAir1100 series (711091N)
Air blower (type, marking)
Holset, HE351W
Nozzles (type, marking)
CRIN2, 0 445 120 329
Fuel injector (type, marking)
CR/CP3S3/L110
Control unit (marking)
CM2880
Power supply system (type)
Common Rail, direct fuel injection with common ramp
Fuel
diesel fuel
Maximum torque, N?m (min-1)
937 (1300)
Maximum power, kW (min-1)
178(2500)
Compression ratio for Cummins, ISB6.7E5250
17...17.6
Cylinder displacement
6700
Number and arrangement of cylinders
6, inline
Internal combustion engine (make, type)
Cummins, ISB6.7E5250, four-stroke diesel engine
Maximum trailer weight
trailer towing is not provided
Technically permissible maximum rear axle weight
9500 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
