Rail Lifting Grab for R50, R65, R75 - ZR-1-R65

Rail Lifting Grab ZR-1-R65 for Efficient Rail Handling

Manufacturer:SAMSON LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Description

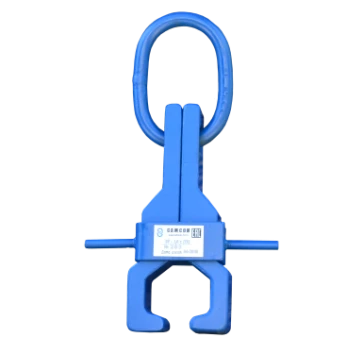

Gripper ZR is designed to lift and move the rail by the head. The clamp is recommended for work with railway main rails of P50, P65 and P75 types.

The gripper is constructed of two half levers and is fitted with a safety ring lock to prevent opening. The gripper can be used individually or in pairs. When using several grippers of ZR type it is recommended to suspend them on a crossbeam.

Specifications

Payload
1 t
Suspension link size
90x150 mm
Rail type
?65 mm
Designation
ZR-1,0-R65
Product weight
9.5 kg
Manufacturer's item
20400041457
