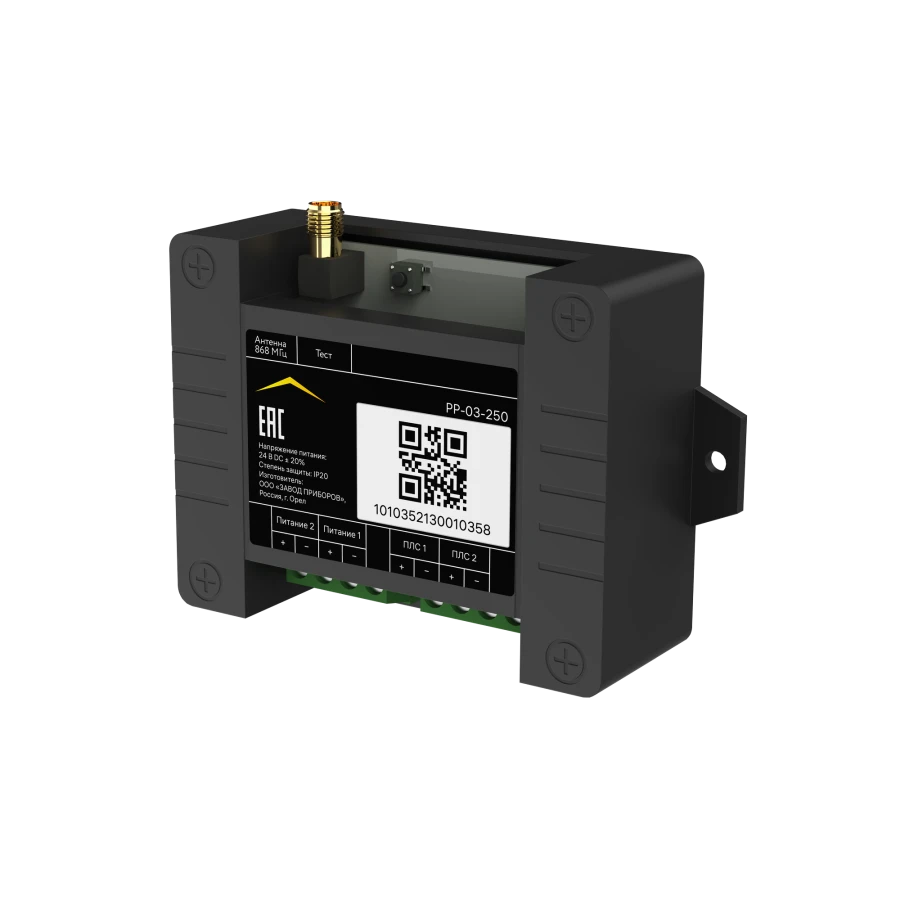

Radio Range Extender for RUBETEK Devices - RP-03-250

Available for Import

Radio Range Extender for RUBETEK Devices - Enhance Wireless Communication

Fire Alarm Detectors

Manufacturer: RUBETEK RUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Radio channel extender is designed to increase the range of radio communication between the device receiving and monitoring fire and control and radio channel devices "RUBETEK". RR works as a bridge between the fire alarm control panel and radio channel devices "RUBETEK". As part of the fire alarm system "RUBETEK", together with the device receiving and control fire and fire control addressable analogue PPK-02-250 "RUBETEK", with which the detectors provide information compatibility.

Specifications

Communication interface

PLS.

Number of address slots occupied

1 pcs

Main supply voltage

24 V

Standby power supply voltage

24 V

Consumption current, max.

0.014 A

Number of expanders connected via PLC interface

15 pcs

Availability of built-in isolator

Armoured glass

Communication interface with detectors

RF 868 MHz

Maximum communication range (in open terrain)

900 m

Signal encryption

XTEA 128bit

Number of channels within the frequency range

5 pcs

Radiation power, not more

0.025 W

Operating temperature range

-10...55 °C

Relative humidity at + 40 deg. ?

0...93 %

Degree of enclosure protection

IP20

Dimensions (L x W x H), mm

96x60x29

Weight, not more

60 year

Average service life

10 year

Average MTBF

60000

Probability of failure-free operation in 1000 h

0.98

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
