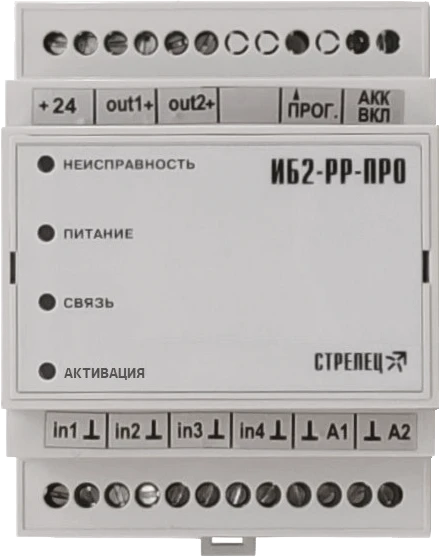

Radio-Controlled Actuator Block IB2-RR-PRO for Fire Safety Automation

Block executive radio channel IB2-RR-PRO is designed to control fire automation devices as part of the integrated system "Strelts-Integral". IB2-RR-PRO contains a radio channel controller (RC), designed to increase the range of the ISB radio channel. IB2-RR-PRO has two DC voltage outputs.

Output parameters: - voltage - up to 28 V (corresponds to the unit power supply voltage); - maximum current - 1 A. IB2-PR-PRO can monitor the line up to the load connected to the outputs. IB2-PR-PRO has four inputs with control by external circuit resistance.

The radio channel is used to exchange information with the receiving and controlling device. The operating frequency is in the range of 866-868 MHz (letter A); 864-865; 868,0-868,2; 868,7-869,2 MHz (letter C). The average service life of IB2-RR-PRO is not less than 8 years.

Overall dimensions of IB2-RR-PRO are 96x71x58 mm. IB2-RR-PRO is designed for installation on DIN rail.
