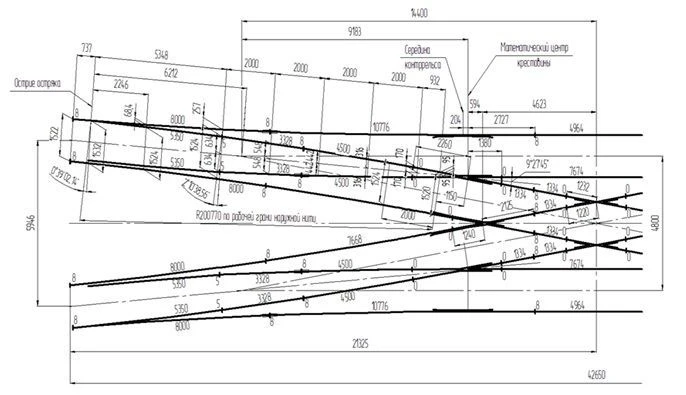

R65 Type Cross Switch for Railways - Model 2/6 with 4.8m Gauge

Design features: exit: separate fastening; pads with flanges; terminals of PC type; arrows: rotary sharps with liner and pad root fastening; pads with cushions on riveted connection; crossbars: sharp mark 2/6 - prefabricated with rail whiskers and moulded core of high-manganese steel with moulded inset end of rear reach; with reduced mortise mark 1/6 - prefabricated with rail whiskers and moulded core of high-manganese steel with moulded inset end of rear reach; blunt mark 2/6 - solid cast type P65 mark 2/9 of high-manganese steel with inset endings of the front and rear end; counter-rail made of angle SP850.
