Available for Import

R&D SSJ aircraft unit

Aircraft Spare Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

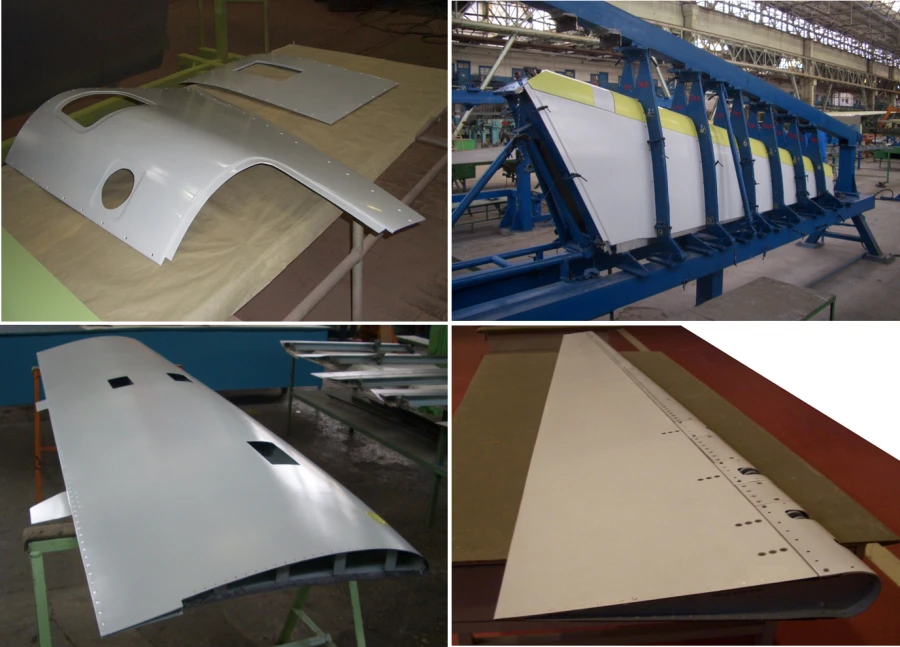

PJSC "VASO" is a supplier of about 150 different types of units made of polymer composite materials, which in total makes up about 10% of the aircraft design. Wing-fuselage fairing; SEP flaps; SEP flaps; Floor panels; Aileron (right/left); Interceptor (3 sections, right/left); Air brake (2 sections, right/left); Flaps - internal/external.Upper panel of the chassis compartment; Lower panel of the chassis compartment; Shield on the support; Flap No.1; Flap hanger fairing; Rear pylon fairing; Keel spar panels; Keel fin; Keel nose section; Rudder; Stabiliser spar section; Stabiliser fin; Altitude rudder. Type of construction of manufactured parts and units: three-layer construction: fibreglass + honeycomb; three-layer construction: glass-carbon fibre reinforced plastic + honeycomb; integral construction: skins and power set made of glass-carbon fibre reinforced plastic;
integral construction: skins and glass fibre reinforced plastic force set....

Technical Specifications

Product dimensions (interceptor)	1,300?0,420?0,060 m
Quantity per 1 board (interceptor)	6 pc
Product weight (interceptor)	6,400 kg
Product dimensions (Air brake)	1,580?0,515?0,075 m
Number per 1 board (Air Brake)	4 pc
Weight of product (Air Brake)	7,600 kg
Product dimensions (aileron)	2,905?0,350?0,090 m
Number per side (aileron)	2 pc
Article weight (aileron)	13,800 kg
Dimensions of the article (canopy fairing)	1,800?1,120?0,200 m
Quantity per 1 board (linkage fairing)	6 pc
Product weight (linkage fairing)	8,819 kg
Product dimensions (pylon)	3,100?1,000?0,300 m
Number per 1 board (pylon)	2 pc
Weight of product (pylon)	26,800 kg
Product dimensions (front landing gear flap)	1,45?0,55?0,050 m
Quantity per 1 board (front chassis flap)	2 pc
Article weight (front landing gear flap)	6,100 kg
Product dimensions (main chassis sash)	1,322?1,238?0,040 m
Quantity per 1 side (main chassis wing))	2 pc
Article weight (main landing gear flap)	18,500 kg
Dimensions of product (Wing-fuselage bay)	2,05?1,2?0,010 m
Quantity per board (wing-fuselage liner)	32 pc
Article weight (wing-fuselage liner)	5,324 kg
Dimensions of item (keel compartment panel )	3,8?1,9?0,012 m
Quantity per 1 board (keel compartment panel)	2 pc
Weight of item (keel compartment panel)	10,750 kg
Product dimensions (forkil)	0,542?0,285?0,250 m
Quantity per 1 board (forequill)	1 pc
Weight of 1 item (forkil)	1,500 kg
Product dimensions (rudder)	5,5x0,9x0,250 m
Number per 1 board (rudder)	1 pc
Weight of 1 item (rudder)	69,000 kg
Product dimensions (rudder diaphragm)	0,25?0,2?0,020 m
Quantity per 1 board (rudder aperture)	18 pc
Product weight (rudder diaphragm)	0,200 kg
Product dimensions (rudder aperture)	0,28?0,18?0,03 m
Quantity per 1 board (rudder aperture)	24 pc
Weight of 1 item (altitude rudder diaphragm)	0,089 kg
Product dimensions (keel end)	0,5x1,5x0,07 cm m
Quantity per 1 board (keel end)	1 pc
Weight of 1 item (keel end)	8,100 kg
Product dimensions (stabilizer panel)	1.4x0.3x6.00 m
Quantity per 1 board (stabilizer panel)	10 pc
Weight of 1 item (stabilizer panel)	1,777 kg
Product dimensions (stabilizer end)	1,3X1X0,0006 m
Number per 1 board (stabiliser end)	2 pc
Weight of 1 item (stabiliser end)	3,060 kg
Product dimensions (tail section of the rudder)	4,2?1,2?0,0004 m
Quantity per 1 board (tail rudder compartment)	2 pc
Weight of 1 item (tail section of rudder)	27,000 kg
Product dimensions (external flap)	5,66?0,88?0,15 m
Quantity per 1 board (flap external)	2 pc
Weight of 1 item (outer flap)	53,000 kg
Product dimensions (inner flap)	3,517?0,86?0,1 m
Quantity per 1 board (flap internal)	2 pc
Weight of 1 item (inner flap)	46,500 kg
Product dimensions (radio transparent nose fairing)	1,8x1,6x0,74 m m
Quantity per board (radio transparent nose fairing)	1 pc
Weight of 1 item (radio transparent nose fairing)	22,600 kg
Dimensions of the article (floor panels)	1,943?0,425?0,01 m
Quantity per 1 board (floor panels)	96 pc
Weight of 1 item (floor panels)	3,279 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
