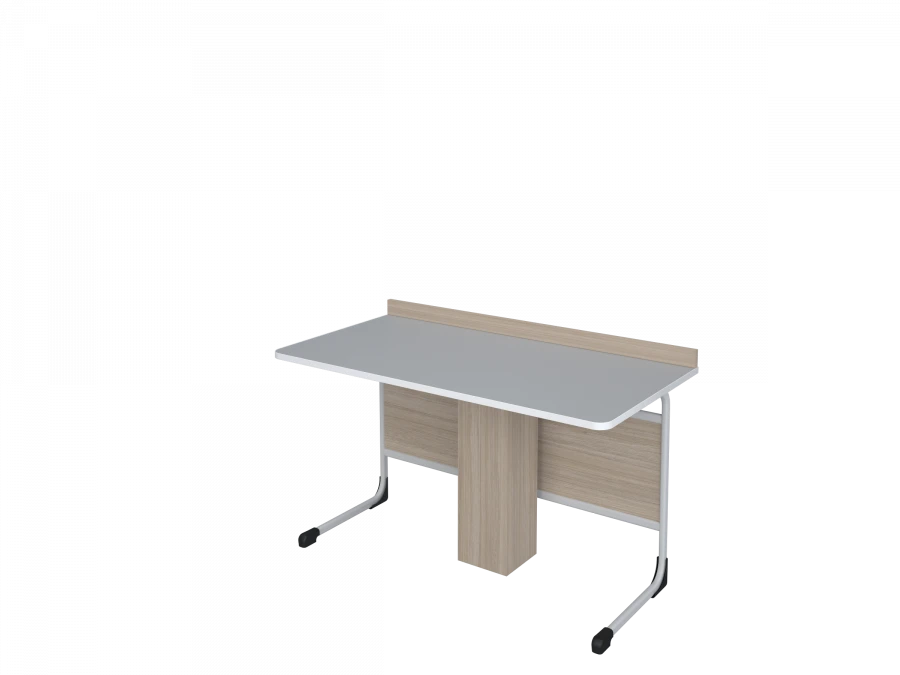

Pupil's table two-seater physical without socket AGAT 01.09.13

Size: 1200x600x760mm.The frame consists of two bent supports made of metal flat-oval tube with cross-section 40x20x1,5mm and two traverses with cross-section 30x15x1,5mm.The inner radius of bending of supports is 70mm.In the inner part of the radius bend there is a "stream" of rigidity.The lower angle of inclination of the workpiece is 80°, the upper one is 100°.On the outer side of the bend of the support is welded support corner made of a metal plate 107h13h1,5.On each support is welded two plates from the top and back of the support, the size of 30h35h2 with a through hole for fastening the lid and the table kingdom.All visible holes in the tube are closed with plastic plugs. To a metal corner, from the outer side of the table leg bend, a plastic corner support 110x95x25mm is fixed.On the front edge of the metal supports plastic lugs 65x45x25mm are put on.There are 2 hooks. The frame is painted with powder paint. Tubma under communications 250x250x733mm. Curb along the back edge. Table top plastic 26mm, bollard, tsarga, edge made of LDFP 16mm.
