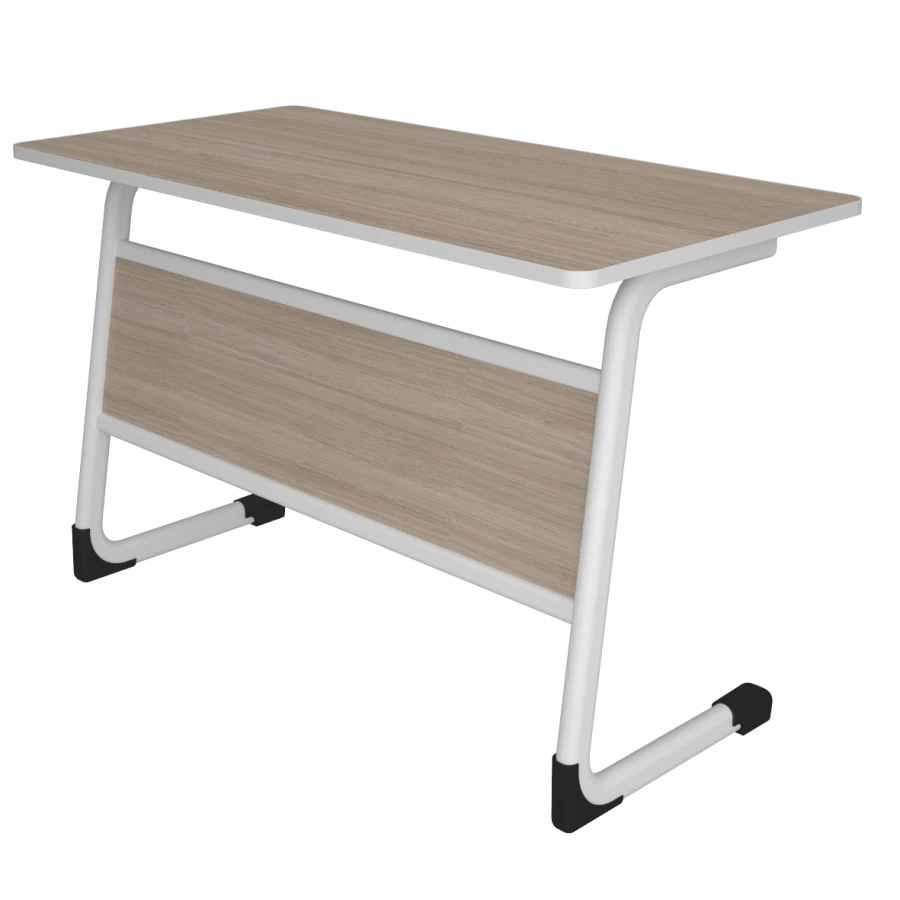

Pupil's table FrPU1.2.4 (two-seater, height)

The frame consists of two supports made of flat-oval pipes and two crossbeams: 40x20x1,5 and 30x15x1,5.The inner radius of the bend of the supports is 70mm.In the inner part of the radius bend there is a "stream" of rigidity.On the outer side of the bend of the support is welded corner of a metal plate 107x13x1,5mm, two plates on top and behind the support, the size of 30x35x2mm with a through hole.In the middle of the two beams is fixed a bent billet L-shaped from a flat-oval tube 40x20x1,5mm.On the support, also welded two plates 30x35x2mm to attach to the table cover.All visible holes in the pipe are closed with plastic plugs.To the metal corner, on the outside of the bend of the table leg, a plastic corner support 110x95x25mm is attached.On the front edge of the metal supports are put plastic tips 65x45x25mm.2 hooks.Fastening of the table cover and the headboard is carried out by means of a threaded connection .The table cover LDFP 22mm with rounded edges(R-50mm).The headboard LDFP 16mm
