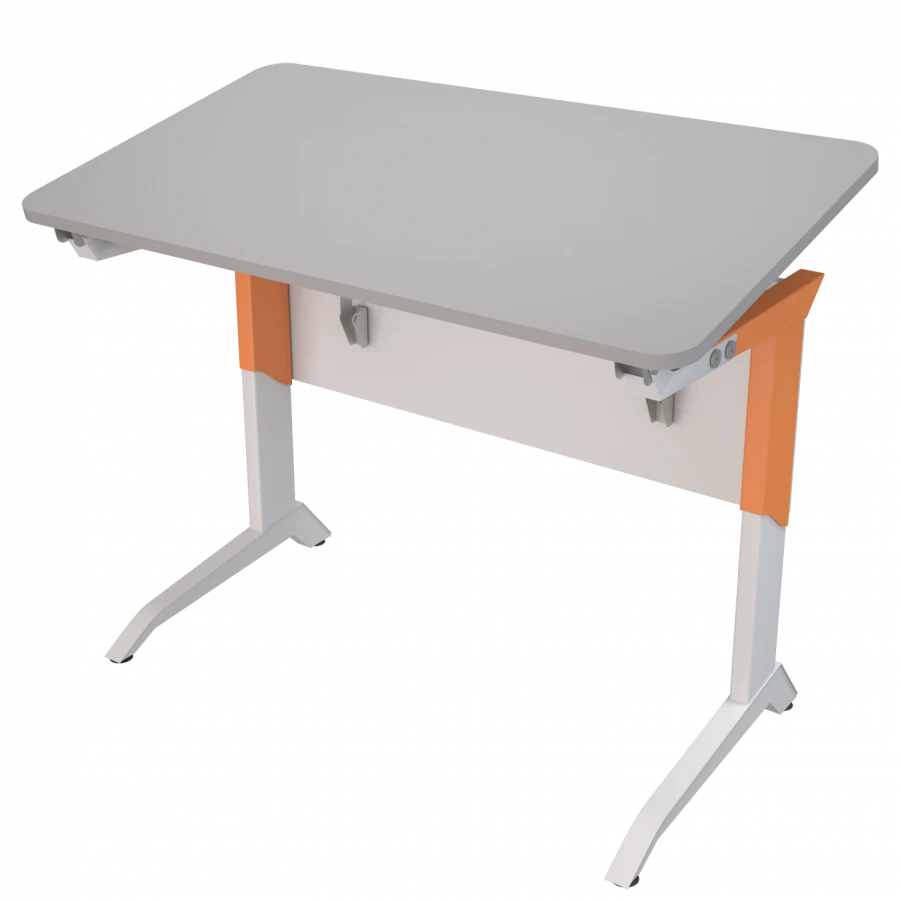

Pupil's table FrPU 2p.2.5-7

The top of the frame is made of cold-rolled bent sheet 1.5 mm, namely two profiles welded to each other without visible welds. The first profile is U-shaped, 380mm long, located under the table top. The mechanism parts are two brackets: 1) a U-shaped bracket, which is fixed directly to the table top through a 7.5 mm diameter hole with a m6x12 screw. It also has two coaxial holes with a diameter of 8,5 mm, through which passes a screw m8x60, which connects the bracket-frog with the bracket-frog and fixed with a nut M8. 2) the frog bracket has a U-shape with elongated shelves with 2 holes 8,5 mm each for connection with the first profile. 2 hooks. The bottom of the frame is made of cold-rolled profile pipe 40x40x1.5 and cold-rolled sheet, thickness 1.5mm. To the base of the rack are welded two paired profile pipes 40x40x1.5 forming a cross-section of 40x80.Table top.LDFP 22mm.Tsarga of LDFP 16mm.Coating frame powder paint
