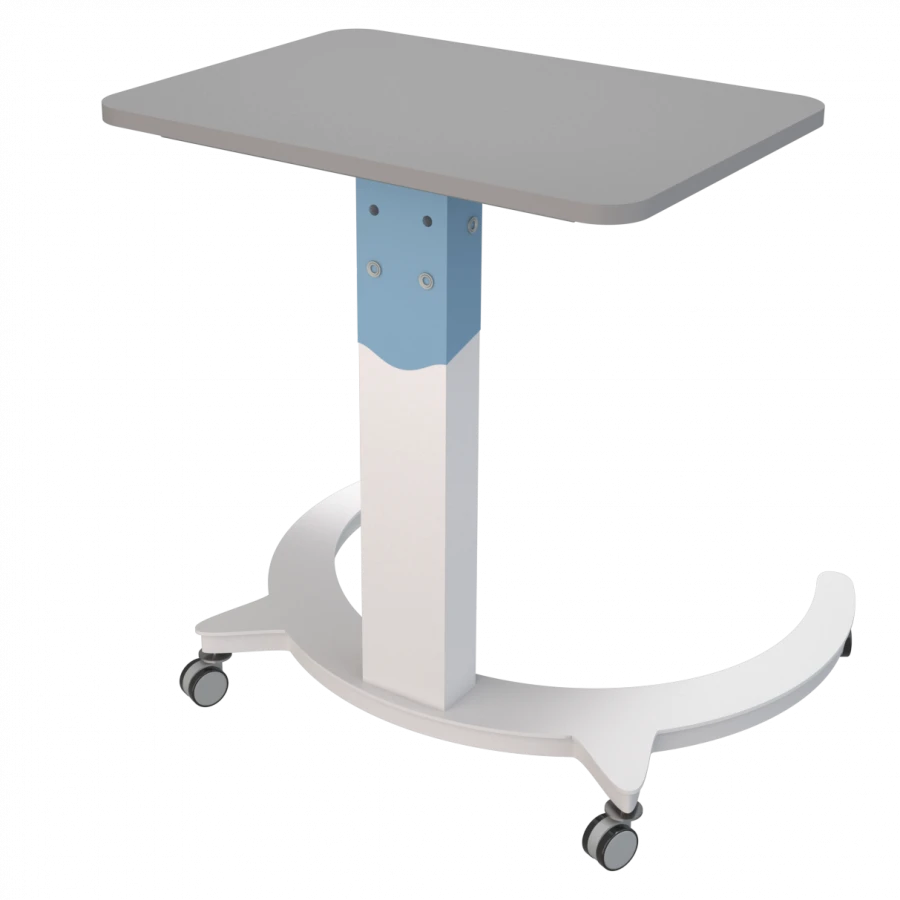

Pupil's table AGAT 01.03.09.02

The frame is made of 40x40x1.5mm, 20x20x1.5mm and 16mm diameter round pipe, 1.5mm and 2.0mm thick sheet and 3.0mm thick sheet. The top is made of 20x20x1.5 pipe, welded in the form of a frame (strapping) with holes for fastening the table top, as well as laid (welded) to the frame U-shaped profile of 1.5mm sheet, with special cutouts for the passage of the frame pipe through it. To the profile of the frame at an angle of 90 degrees welded U-shaped adjusting profile of sheet 2.0mm.Bottom is made of paired 2 pipes 40x40x1.5 forming a cross-section of 80x40. The base is made of welded strips of 2.0 mm thick sheet metal. A cover made of 3.0 mm sheet metal is welded on top of the welded blanks, repeating the complex contour of the base. On the edges of the base from four sides at an angle of 90 degrees to the sheet cover of 3.0mm welded round tube with a diameter of 16mm long 50mm. In it is installed wheel support with a stopper through a rivet m10.Material of manufacture of a table top LDFP
