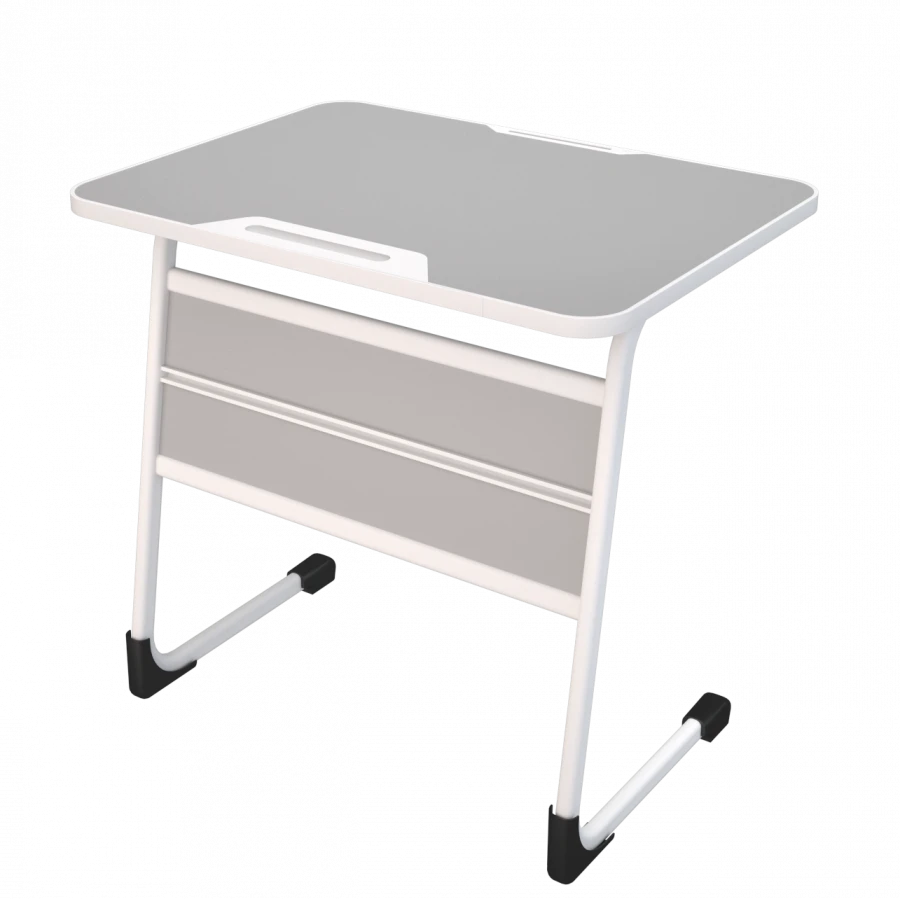

Pupil's table AGAT 01.03.01.05 (single-seat, height)

Frame dimensions 690x470x524. It consists of two bent supports made of flat-oval tube section 40x20x1,5 mm and 2 traverses made of flat-oval tube section 30x15x1,5 mm. The inner radius of bending of the supports is 70mm. In the inner part of the radius bend there is a "stream" of stiffness. On the outer side of the support bend, a support angle made of a 107x13x1,5 mm plate is welded on for further fixation of the plastic support. All visible holes in the pipe are closed with plastic plugs. A plastic corner support 110x95x25mm is attached to the metal corner on the outer side of the table leg bend. On the front edge of the support plastic lugs 65x45x25mm are put on. 2 hooks. The frame is powder painted. Cover LDFP 22mm End surfaces of the table top, pencil case and pens are covered with 5 mm thick polypropylene. Polypropylene edge and pencil case are made by casting method, tightly fit and repeat all the contours of the table top LDPE 16 mm with an anodised aluminium profile insert
