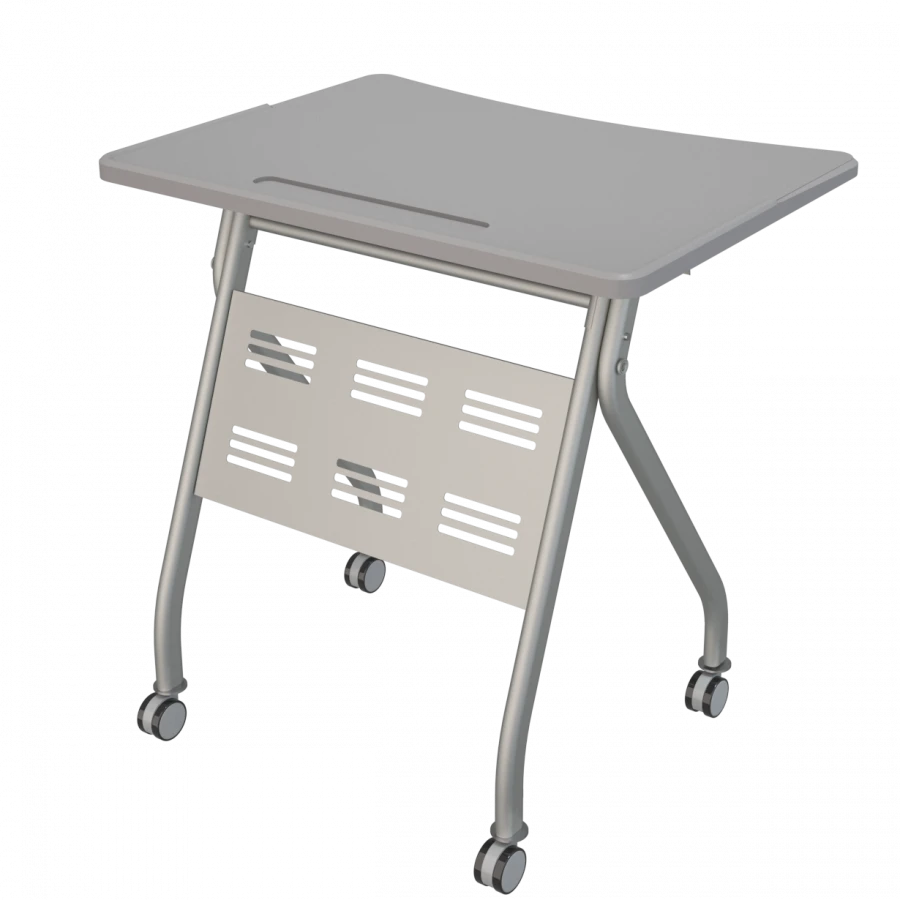

Pupil's table AGAT 01.03.01.02

Dimensions m/k 590h500h738.Made of flat-oval cold-rolled tube 45h25h1,5 mm and round tube diameter of 22 mm, sheet thickness of 1.5 mm and 1.0 mm.The frame consists of the upper part, which has a mechanism for tilting the table top, and the bottom.Support consists of two flat-oval tubes, cross-section 45h25h1.5 welded with each other on the flat side.The tubes have bends in the upper and lower parts. The welded pipes of the support form an L-shape. In the upper part there is a U-shaped profile under the table top, fastening through the screw m6x16.The profile itself and the flat-oval tube of the support connects the mechanism of tilting the table top, fixing the table top in the tilted (80 degrees) and working position (0 degrees). In the lower part of the leg there are wheel supports with a stopper. The left and right legs of the frame are connected through m8x60 screws by a crossbeam.The crossbeam is made of a round tube with a diameter of 22mm and brackets welded on both sides, repeating the contour of the flat-oval tube of the support.Tsarga sheet 1.0mm.Table top polypropylene
