Available for Import

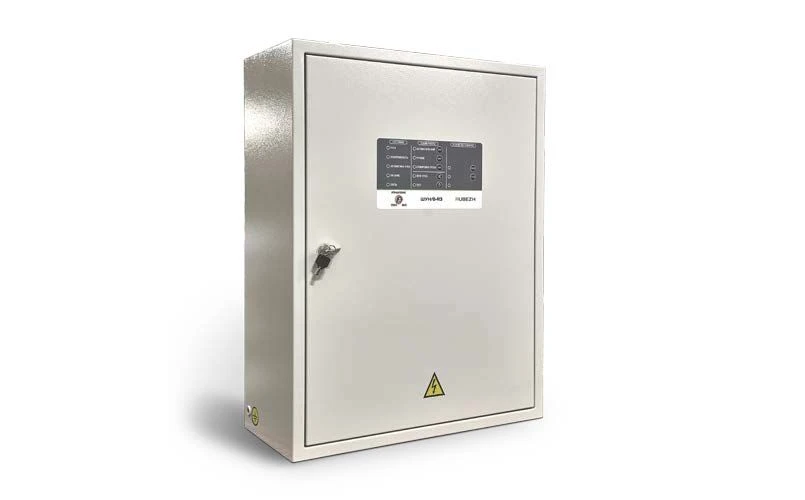

Pump or fan control cabinet SHUNO/B-X1-X2-X3-R3

Fire Safety Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Pump or fan control cabinet SHUN/B-O-X1-X2-X3-R3 Gate valve control cabinet SHUZ-X1-X2-X3 Control cabinet SHU-X1-X2-X3

ShUN/B-X1-X2-X3-R3 can perform the functions of controlling the operation of: fire pump; drain pump; jockey pump; fan. SHUN/B-X1-X2-X3-R3 realises the following functions: control of presence and parameters of power supply at the network input; control of serviceability of the main circuits of the electrical circuit of the device; control of serviceability of input circuits from sensors and electro-contact gauges for open circuit and short circuit; control of the power circuit of the motor supply; local switching of the control mode of the electric drive to one of 3 modes: "Automatic" / "Manual" / "Disconnected"; transfer to the control panel signals of its state via digital communication line RS-R3; control of the connected actuator in accordance with commands received via digital communication line RS-R3 from the control panel, by level sensor commands or by local control commands.

Technical Specifications

Supply voltage, V	Depends on performance
Current consumption from ALS, mA, not more	0.21
Weight, not more	Depends on performance
Control of the heater	no
Power of the connected electric motor, kW	Depends on performance
Own power consumption from the mains, VA, not more	100
Degree of protection of the shell	I?31 (I?54 on customer's request)
Type of grounding system	TN-C/TN-S
Dimensions	Depends on performance
Average service life, years	10 a
Operating temperature range, C	-25...55 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
