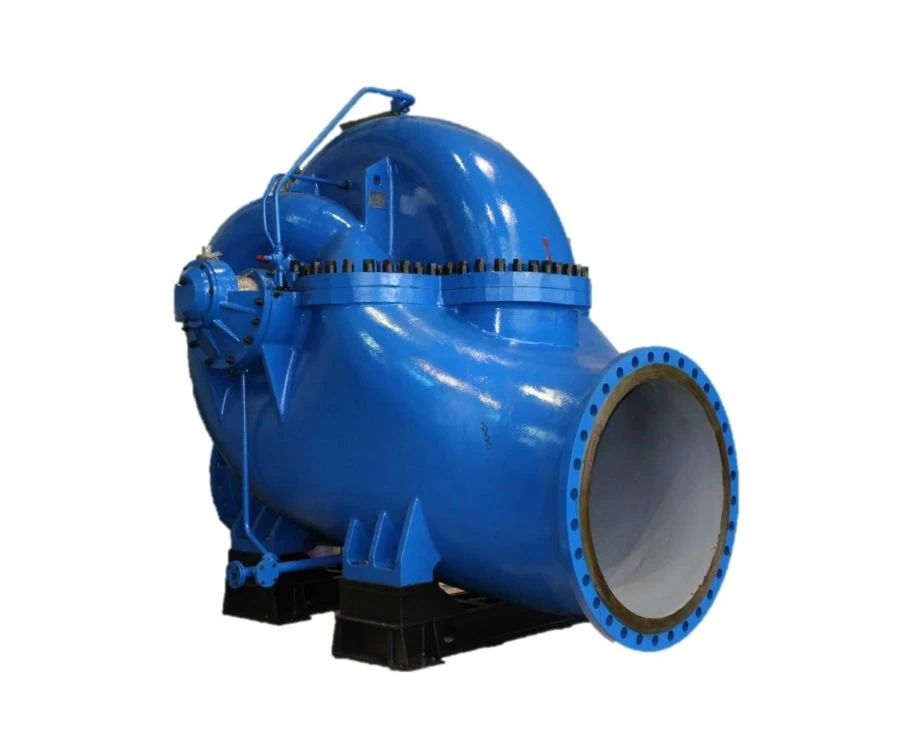

Pump D 12500-24 M and electric pump units on its basis

Pumps centrifugal double-entry type D 12500-24 M and electric pump units on their basis are designed for pumping water and chemically active non-toxic liquids with density up to 1000kg/m3, temperature up to plus 85°C, containing no solid inclusions by mass more than 0,05%, size more than 0,2mm. Centrifugal horizontal single-stage pump with double-entry impeller. The pump casing is cast, the internal cavities of which form an inlet branch pipe, passing into two half-spiral inlets and a spiral outlet, passing into a pressure branch pipe.
FEATURES/ADVANTAGES:
-different impeller diameter designs allow the pump parameters to be optimally matched to the required performance;
The use of double-sided impeller allows to balance axial forces and reduce bearing loads;
-the presence of a horizontal connector of the pump casing and pump cover allows for on-site repair without dismantling the pipework.
