PULSE SIGNAL AMPLIFIER VCH-606

Electric Inspection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

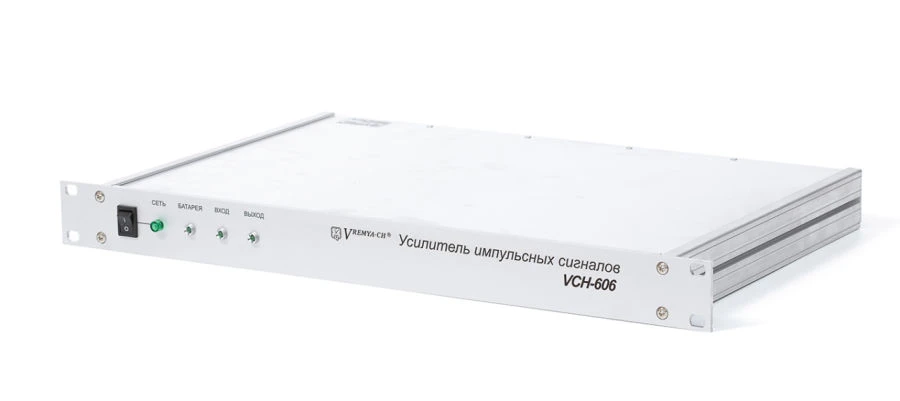

The VCH-606 pulse signal amplifier is designed for reproduction of single pulse signals or pulse sequences to 16 independent outputs. Structurally, the amplifier is designed as a monoblock, in a metal case rack version.Functionally, the amplifier consists of a pulse selector, digital-to-analogue converter, pulse distributor, delay lines, signal detectors, output buffer amplifiers and power supply.The principle of operation of amplifiers is based on the formation of the input pulse signal normalised pulse signal, having for the internal circuits of the amplifier levels TTL, and distribution of this signal to 16 output buffer amplifiers, for the front of the amplifier.

Technical Specifications

Working conditions of operation: relative humidity at air temperature +25 C	80 %
Operating conditions: atmospheric pressure	84...106
Operating conditions: ambient air temperature	5...40 °C
DC mains power consumption	20 W
Power consumption from AC mains	20 V
DC supply voltage	22 V
AC mains supply voltage	220 V
Weight of amplifier in package	6 kg
Amplifier weight	4 kg
Overall dimensions: depth	310 mm
Overall dimensions: height	44 mm
Overall dimensions: width	483 mm
Relative difference of delays of working edges of output signals	150
Delay of signal propagation from input to output	20
Time to establish operating mode	10
Pulse output parameters: edge duration	1
Pulse output parameters: Pulse amplitude	2.5...5 V
Pulse input parameters: Pulse duration	SBVVBG
Pulse input signal parameters: pulse amplitude	10 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
