PTF, PNF turbine liquid meters

Water and Liquid Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

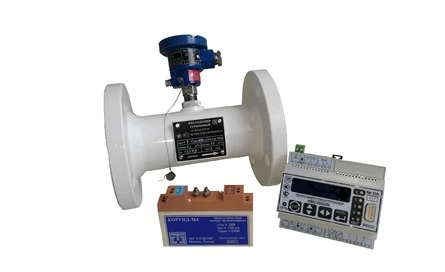

Turbine liquid meters PTF, PNF are designed to measure with high accuracy the volumetric flow rate and volume of liquid in pipelines. The principle of operation of the meters is based on the conversion of the rotor speed in the values of volume flow rate and volume of liquid flowing through the meter. The meters consist of a turbine-type volume and volumetric flow converter and a secondary converter, which is used as a heat and energy controller IM2300. The converter includes a body with flanges (flangeless version is possible), rotor assembly with axle holders, bearings and deflectors, one or two induction signal converters PSI-90, PSI-90-D, PSI-90F, PSI-90F-D with amplifiers - signal formers FS-30. Liquid meters of PNF and PTF type have high reliability, provide measurements of various products in a wide range of flow rates.

Technical Specifications

Nominal bore diameter	15...250 mm
Connection type	Flanged
View	Turbine liquid meters
View	Turbine
Connection type	Flange
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Relative error tolerance limits of counters	0.1...5 %
Flow measurement range	0.5...2000
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
