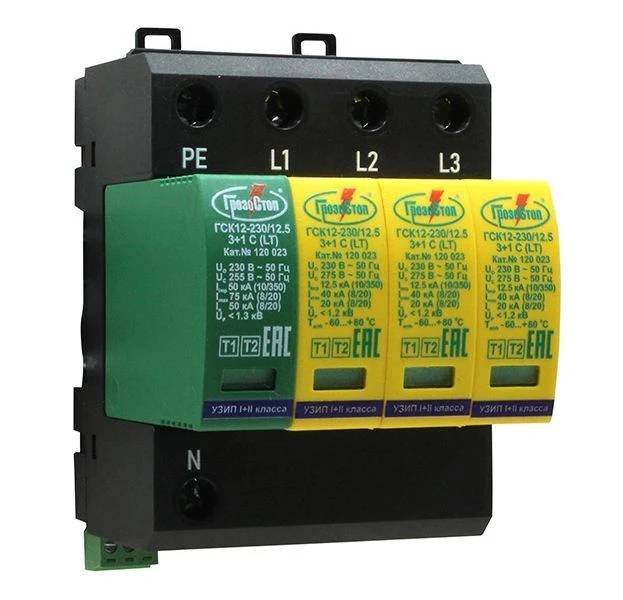

Protection device against impulse overvoltages GSK12-230/12,5 3+1 (LT), cat.no.120 024.

Surge Protection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Three-phase modular surge arresters of class I+II combined type for networks with earthing system of TN-S type. Uo = 230 V AC. Iimp(L/N) (10/350) = 12.5 kA. Imax(8/20) = 40 kA. Installed within 0A(V) - 1 lightning protection zones (in accordance with GOST R IEC 62305-1 and CO-153-34.21.122-2003).

Specifications

Surge protection class I+II

Rated operating voltage Un 230 V

Housing material Polyamide PA6, UL94 V-0

Dimensions, WxWxH 70x102x79 mm

Number of channels 1 pc

Maximum operating current 160 A

Weight 536 g
