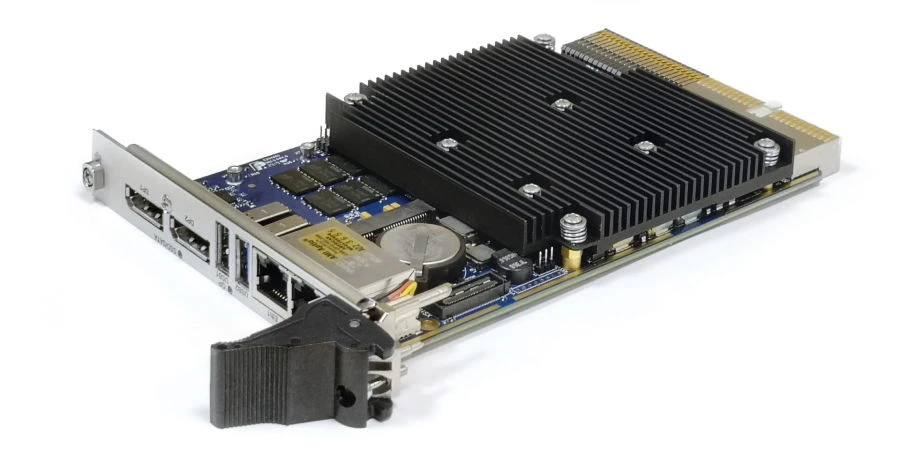

Processor module CPC520-02 (IMES.467444.110-01)

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

CPC520 CPU module CPC520 IMEC.467444.110 (hereinafter referred to as the product) is a high-performance processor board in 3U CompactPCI Plus IO (PICMG 2.30) form factor. The CPC520 module is a continuation of the line of 3U CPCI modules produced by CJSC "NPF "DOLOMANT". The CPC520 module uses high-speed I/O interfaces (PCI-Express, Gigabit Ethernet) and supports modern technologies for working with video. The modular design of the product allows flexible customisation of the system for specific applications, thus optimising the price/quality ratio. The MIC584 mezzanine module is designed to extend the functionality of the CPC520.

Technical Specifications

Operating temperature range	From minus 40 to plus 85 C
Software compatibility with OS	Linux; Microsoft Windows 10
Power supply voltage	+ 5 ?
Indication	Dual-colour power LED, disc drive activity LED and dual-colour user programmable LEDs
Hardware monitor	Power supply voltage monitoring; CPU, PCB temperature monitoring
Watchdog timer	WDT with programmable trigger interval
Audio Support	Digital HD Audio interface; Output to mezzanine connector Audio output via DisplayPort connectors possible
Real Time Clock	Powered by CR2032 lithium battery (3 V)
FRAM memory	32 Kbytes for user data storage
USB ports	Two USB 3.0 ports on front panel; One USB 2.0 port on J2 connector; Two USB 2.0 ports on mezzanine connector; One USB 2.0 port on MiniPCI connector.
2 LAN 10/100/1000 ports	Both connectors are brought out on the front panel with possibility of switching to J2 connector
SATA II interface	Transmission speed up to 3 Gbit/sec; Possibility of switching interfaces to mezzanine connector and SSD SATA Flash Disk drive
MiniPCI Express device connector	Support PCI Express Rev. 2.0, USB 2.0
Flash disk	32GB SSD SATA Flash Disk soldered on board
FLASH BIOS	8 MB SPI-Flash
PCIe bus	Pinned to J2; Compatible with PCIe 2.0 specification; Supports up to 4 devices in x1 mode (5 Gbps)
LPC bus	Piped to Interface Expansion Connector (Mezzanine Connector); Compatible with 1.1 specification; Supports two Master/DMA devices)
PCI bus	Piped to J1 connector; Supports v2.3 specification; 32 bits, 33/66 MHz; Supports up to 8 bus master devices
Video output	2 Display Port (4K resolution) brought to the front panel
RAM	DDR4 (2400) SDRAM with ECC support, soldered: 8 GB 1 channel
Processor	AMD Ryzen Embedded (R1305G) 1.5GHz, Dual Core

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
