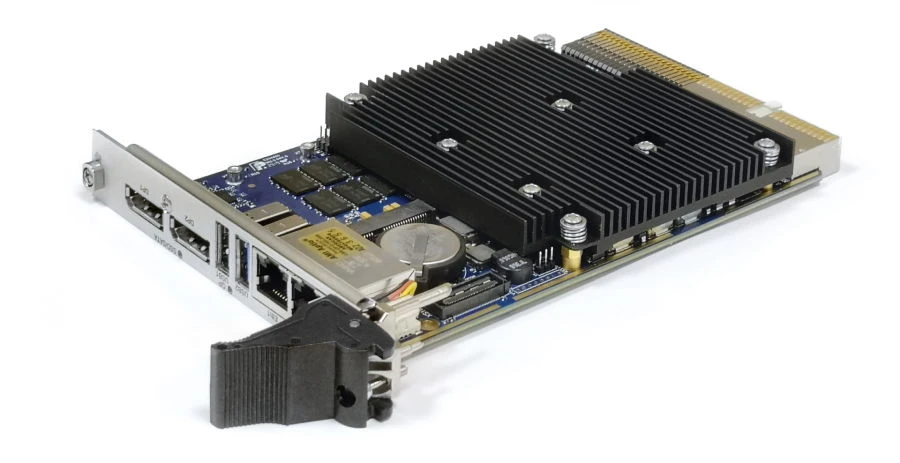

High-Performance Processor Module CPC520-02 (IMES.467444.110-01)

Available for Import

High-Performance Processor Module CPC520-02 for Efficient 3U CompactPCI Applications

Mounted Circuit Boards

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

CPC520 CPU module CPC520 IMEC.467444.110 (hereinafter referred to as the product) is a high-performance processor board in 3U CompactPCI Plus IO (PICMG 2.30) form factor. The CPC520 module is a continuation of the line of 3U CPCI modules produced by CJSC "NPF "DOLOMANT". The CPC520 module uses high-speed I/O interfaces (PCI-Express, Gigabit Ethernet) and supports modern technologies for working with video.

The modular design of the product allows flexible customisation of the system for specific applications, thus optimising the price/quality ratio. The MIC584 mezzanine module is designed to extend the functionality of the CPC520.

Specifications

Operating temperature range

From minus 40 to plus 85 C

Software compatibility with OS

Linux; Microsoft Windows 10

Power supply voltage

+ 5 ?

Indication

Dual-colour power LED, disc drive activity LED and dual-colour user programmable LEDs

Hardware monitor

Power supply voltage monitoring; CPU, PCB temperature monitoring

Watchdog timer

WDT with programmable trigger interval

Audio Support

Digital HD Audio interface; Output to mezzanine connector Audio output via DisplayPort connectors possible

Real Time Clock

FRAM memory

32 Kbytes for user data storage

USB ports

Two USB 3.0 ports on front panel; One USB 2.0 port on J2 connector; Two USB 2.0 ports on mezzanine connector; One USB 2.0 port on MiniPCI connector.

2 LAN 10/100/1000 ports

Both connectors are brought out on the front panel with possibility of switching to J2 connector

SATA II interface

Transmission speed up to 3 Gbit/sec; Possibility of switching interfaces to mezzanine connector and SSD SATA Flash Disk drive

MiniPCI Express device connector

Support PCI Express Rev. 2.0, USB 2.0

Flash disk

32GB SSD SATA Flash Disk soldered on board

FLASH BIOS

8 MB SPI-Flash

PCIe bus

Pinned to J2; Compatible with PCIe 2.0 specification; Supports up to 4 devices in x1 mode (5 Gbps)

LPC bus

Piped to Interface Expansion Connector (Mezzanine Connector); Compatible with 1.1 specification; Supports two Master/DMA devices)

PCI bus

Piped to J1 connector; Supports v2.3 specification; 32 bits, 33/66 MHz; Supports up to 8 bus master devices

Video output

2 Display Port (4K resolution) brought to the front panel

RAM

DDR4 (2400) SDRAM with ECC support, soldered: 8 GB 1 channel

Processor

AMD Ryzen Embedded (R1305G) 1.5GHz, Dual Core

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
