Processor module CPC507-02 (IMES.467444.117-01)

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

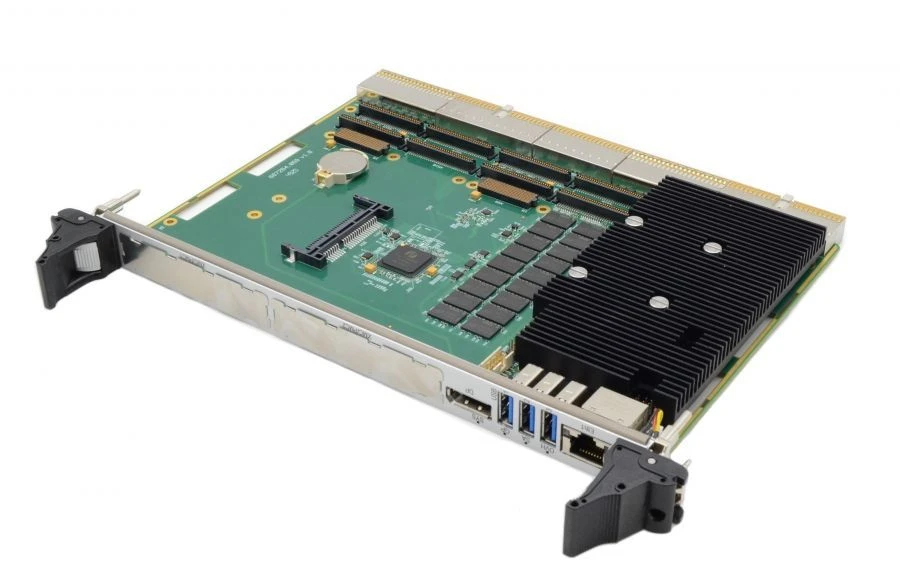

The CPC507 processor module is designed according to the CompactPCI standard, 6U format. Its most important feature is the presence of two PMC/XMC mezzanine pads. Due to the use of a single-chip solution based on SoC AMD FP5 APU (Ryzen Embedded V-Series) together with two mezzanine modules, the product can be used in compact and budget computing systems.

Technical Specifications

Operating temperature	From minus 40 to plus 85 C
Power supply voltage	+3.3 V; +5 V, +12 V, -12 V
Software compatibility with OS	Linux Debian 10; Astra Linux Special Edition, Release "Smolensk" v1.5, v1.6; Microsoft Windows 10 IoT Enterprise 64bit
XMC/PMC expansion card support	Supports two PMC/XMC modules; 64-bit/66 MHz PCI-X bus is routed to P1-P4 PMC1 and PMC2 (ANSI/VITA 39, PCI-X for PMC and Processor PMC); PCIe x8 Gen3 bus is routed to P15 XMC1 (ANSI/VITA 42.3, XMC: PCI Express Protocol Layer), can be used with a PCIe x8 Gen
Hardware monitor	Implemented via SMBUS interface; monitoring of up to 7 supply voltages; board temperature monitoring at two points
Watchdog timer	From 30 µs to 512 c with program control option
Real Time Clock	Powered by CR2032 lithium battery (3 V)
USB ports	Support USB 2.0 (480 Mbps), USB 3.1 Gen 1 (5 Gbps); connect up to three devices via front panel connectors (USB 3.1 Gen 1)
3 LAN 10/100/1000 Mbit ports on PCIe x4 Gen2	Two channels are backplane mounted (PICMG 2.16); one channel is front panel mounted; Intel i350 server network adapter is used
SPI interface	FRAM support
CFast drive	SATA III 6 Gbps speed
Built-in SATA SSD storage	64 GB 3D NAND Flash (Pseudo-SLC); SATA III 6 Gbps interface
FRAM memory	32 Kbytes
PCIe bus	PCIe Gen3 (up to 8GT/s) brought out on P15 XMC connector with support for devices up to x8; it is possible to use x8 link in 2x4 mode, x4 links are brought out on P15 XMC1 and XMC2 connectors
PCI bus	Displayed on CompactPCI J1/J2 connectors; 64 bits/66 MHz; realized on PCIe->PCI-X bridge PI7C9X130; operation in peripheral slot (Non-transparent Bridge mode).
Video output	DisplayPort interface (resolution up to 4096x2160@60Hz) is on the front panel
RAM	DDR4-2400 SDRAM with ECC: 8GB; 64-bit data bus
Processor	AMD Ryzen Embedded V1404I SoC APU 1.7GHz 15W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
