Processor module CPC505-01-COATED (IMES.467444.143-02)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided

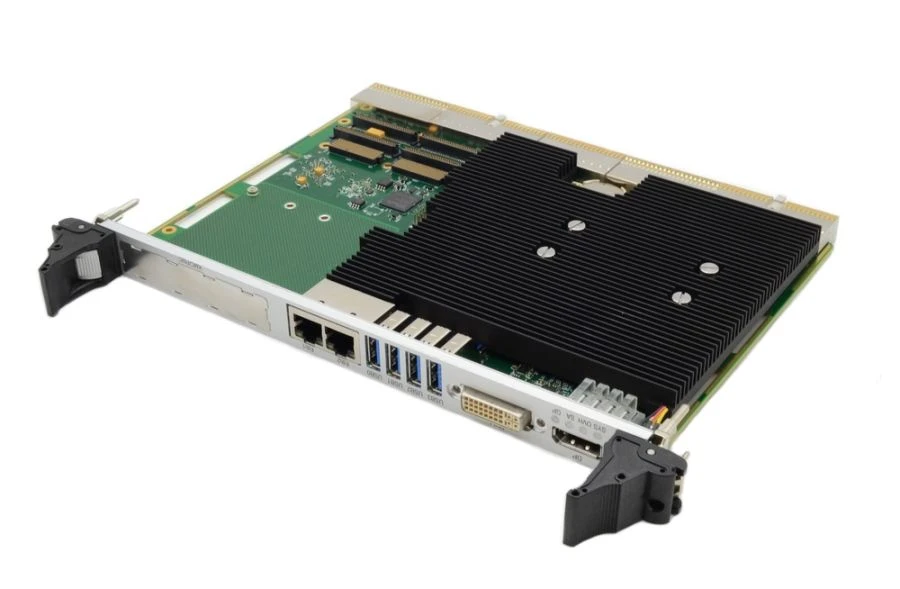

The CPC505 processor module is designed to provide customers with a highly integrated x86 platform solution in CompactPCI 6U format for real-time, production control, high-speed data acquisition and processing applications. The module is based on ninth generation Intel Xeon and Core processors with an integrated graphics core. The CPC505 uses the CM246 chipset, which has a modern set of interfaces, including PCI Express 3.0, SATA 3.0, USB 3.1, etc. The graphics core integrated into the processor provides the module with great possibilities when working via DisplayPort, DVI-I, LVDS video interfaces. Up to 32 GB of DDR4 RAM with ECC can be installed on the module. The CPC505 supports a single 64-bit 66 MHz CompactPCI interface. The board interfaces to the CompactPCI bus via an integrated PCI-E <-> PCI bridge.
Technical Specifications
| Moisture-proof coating | Armoured glass |
|---|---|
| Temperature range of the module | From minus 40 to plus 85 C |
| Supply voltage and maximum current consumption | 5 V +/-10%; 9 A; 3.3 V +/-10%; 3.6 A |
| Software compatibility with OS | Linux Debian 10; Astra Linux Special Edition, Release "Smolensk" v1.5, v1.6; Microsoft Windows 10 IoT Enterprise 64bit |
| XMC/PMC expansion card support | Supports a single PMC/XMC module; PCI-X 64 bit/133 MHz bus is brought out on P1-P4 PMC connectors (ANSI/VITA 39, PCI-X on PMC); PMC I/O P4 is brought out on RIO (PICMG 2.0); PCIe x8 Gen3 bus is brought out on P15 XMC connector (ANSI/VITA 42.3, XMC PCI Expr |
| Hardware monitor | Implemented via PECI/SMBUS interfaces; Monitoring of three power supply voltages; CPU temperature monitoring; PCB temperature monitoring |
| Watchdog timer | Internal with program control option |
| COM port | The COM0 port is routed to a connector on the board, if necessary, a plug with a D-SUB connector can be installed in the XMC mezzanine faceplate cutout. In this case, the XMC mezzanine cannot be used |
| Audio Support | The HD Audio interface is brought out on the P16 XMC and RIO connectors |
| Real Time Clock | Yes; Powered by CR2032 lithium battery (3 V) |
| USB ports | Support USB 2.0 (480 MB/s), USB 3.0 (5 GB/s), USB 3.1 (10 GB/s); Connect up to four devices via front panel connectors (USB 3.0); 2 USB 3.1 interfaces are brought out on P16 XMC connector; 6 USB 2.0 interfaces are brought out on RIO |
| 2 LAN 10/100/1000/2500 Mbit ports on i225 controllers | Supports speeds up to 2.5 Gbps on Category 5e cable |
| 4 10/100/1000 Mbps LAN ports on PCIe x4 Gen2 | Two channels output to RIO connector; Two channels output to P16 XMC connector; Supports PICMG 2.16 standard; Uses Intel i350 server network adapter |
| SPI interface | FRAM support; Frequency up to 25 MHz |
| SATA interface | One interface is brought out on the P16 XMC connector; One interface is used to connect the integrated SSD; Two interfaces are brought out on the RIO |
| Support for M.2 2280 (PCIe x4 Gen3) drives | Armoured glass |
| Built-in SSD | 32 GB capacity; SATA III 6 Gbps interface |
| FRAM memory | 32 Kbytes; Implemented on the SPI bus |
| FLASH BIOS | 2x128 MB SPI-Flash; Possibility of modification in the system |
| SMBUS bus | Compatible with 2.0 specification; Speed up to 100 kbps |
| PCIe bus | PCIe Gen3 (up to 8 GT/s) is brought out on the P15 XMC connector with support for devices up to x8; PCIe Gen2 (up to 5 GT/s) is brought out on the CPCI J3/P3 connector with support for devices up to x4; XMC is compatible with ANSI/VITA 42.3 specification |
| LPC bus | Output to P16 XMC connector; Output to RIO |
| PCI bus | Displayed on CompactPCI J1/J2 connectors; 64bit/66 MHz; Implemented on PCIe->PCI-X bridge PI7C9X130; HotSwap support; Work in peripheral slot (Non-transparent Bridge mode). |
| Video output | DVI-I interface (1920x1200@60 Hz) brought to the front panel; DisplayPort interface (4096x2304@60 Hz) brought to the front panel; DisplayPort interface (4096x2304@60 Hz) brought to RIO; LVDS interface (1920x1200@60 Hz) brought to RIO; Simultaneous operatio |
| RAM | 32GB DDR4 SDRAM |
| Processor | Intel Xeon E-2276ML 2.0GHz 25W |
