Processor module CPC1401

Advanced Computing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

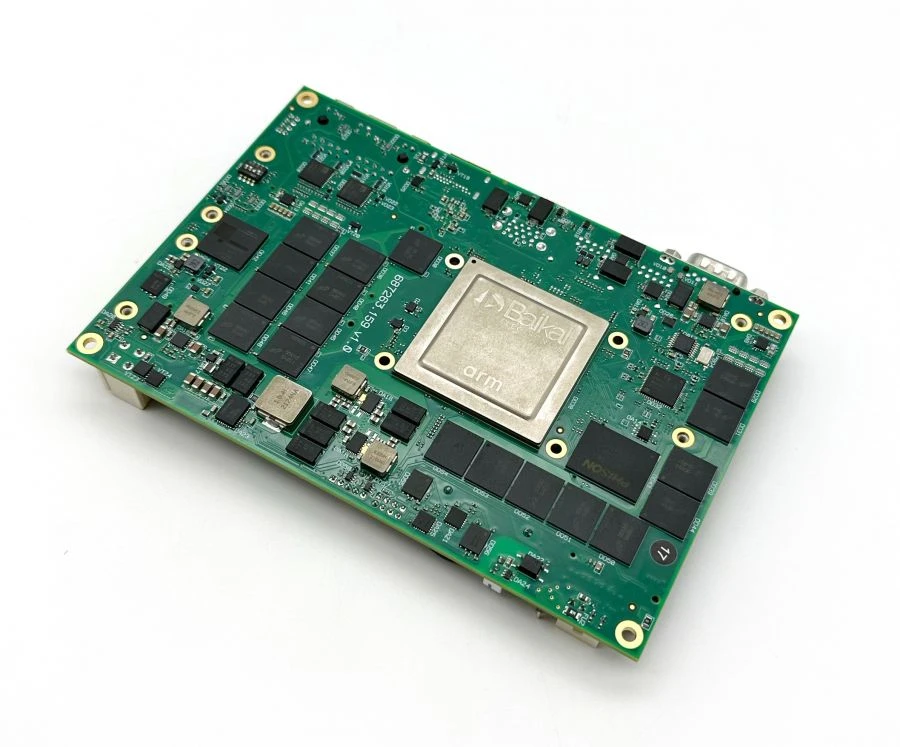

The product is a 3.5" format processor module on the domestic Baikal-M processor, designed for embedded applications requiring high performance and low power consumption.

Technical Specifications

Processor	Baikal-M (BE M1000)
RAM	DDR4-2400 SDRAM with ECC; Soldered; 1 channel; Up to 16GB total capacity.
Built-in eMMC Flash drive	16GB
Video output	1 Display Port; 1 LVDS port
Flash memory for Loader	16 MB SPI-Flash
MiniPCI Express expansion module connectors	2 full-size connectors; Support PCI Express Rev. 2.0
Support the possibility of SIM card connection when installing GSM modem in MiniPCI Expre expansion module connectors	Armoured glass
SATA III interface	2 ports; Transfer rate up to 6 Gbps
M.2 NVME Disk Connector	Key M connector; Supports sizes 2242, 2280
1Gbit Ethernet interface	Two ports; Support 10/100/1000 Mbps modes
RS232 interface	1 port on standard D-Sub type connector; 1 port on expansion connector
USB interface	Support USB 1.1 (12Mbps), USB 2.0 (480Mbps), USB 3.0 (5Gbps); 2 USB 3.0 Type A ports; 2 USB 2.0 ports are on MiniPCI Express connectors; 2 USB 2.0 ports are on expansion slot.
Connector for fan connection	4-pin connector; Power supply voltage selectable
FRAM memory	8 Kbytes for user data storage
Real Time Clock	Powered by CR2032 lithium battery (3 V)
Opto-isolated external reset input	Insulation breakdown voltage: 500 V
Operating temperature range	Minus 40 ºC to plus 85 ºC
Power supply voltage	+12 ?
Consumption current	Not more than 8 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
