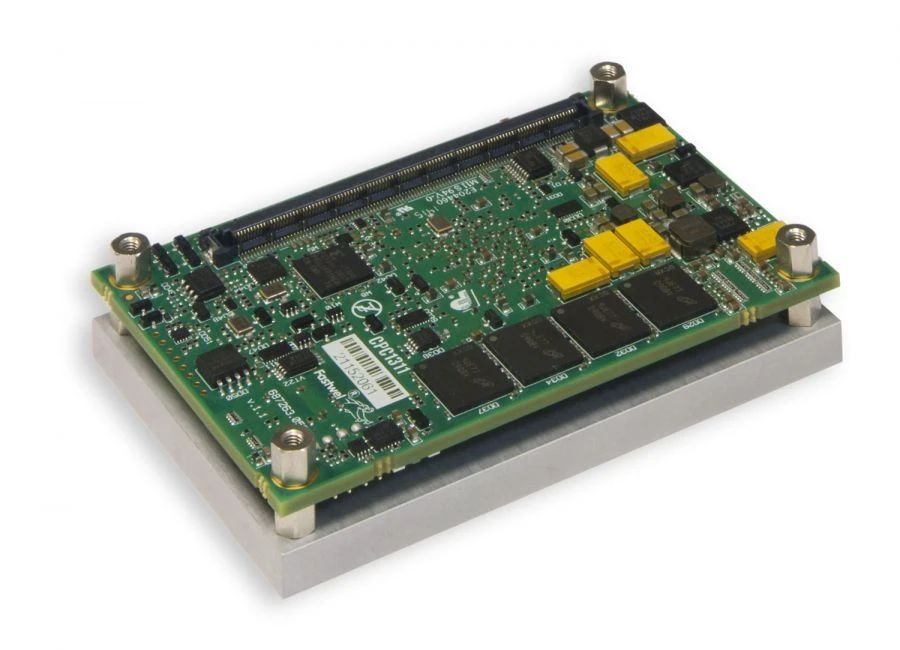

Processor module CPC1311-02 (IMES.421459.131-01)

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Processor module CPC1311-04 (IMES.421459.131-03) Processor module CPC1311-03 (IMES.421459.131-02) CPC1311-01 processor module (IMES.421459.131)

The CPC1311 processor module is made in COM Express mini standard, Type 10.55 x 84 mm. based on Intel Atom E3845/ E3825 processors and is designed for building highly reliable embedded power-efficient systems with small overall dimensions. The CPC1311 complies with the "PICMG COM.0 COM Express Module Base Specification Revision 2.1"

Technical Specifications

Software compatibility with OS	Linux 3.8.0; QNX 6.6; Microsoft Windows Embedded Standard 8; Microsoft Windows Embedded Standard 7
Weight	max. 0.15 kg
Power consumption	12 W
Nutrition	From COM Express connector with extended range (4.75 V ... 20 V)
Operating temperature range	Minus 40 to plus 85C; (temperature control on the heat spreader plate)
FLASH BIOS	64 Mbit SPI-Flash; System modifiability
Watchdog timer	1.2 sec ...10 min
Real Time Clock	Armoured glass
COM Express COM.0 Type 10 connector	3(4) PCIe x1 ports (PCIe Base Spec. Rev 2.0), 5 GT/s; 4xUSB 2.0 (host), 1xUSB 2.0 (client), 1xUSB 3.0 SuperSpeed (host); 2xSATA II ( 3-Gbps Gen. II); 1xGbit Ethernet; 1xSPI (External Boot); 1xLVDS/eDP; Digital Display Interface DDI0 2560x1600 @ 50Hz; 1x
FRAM 8 Kbytes (I2C port)	To store the configuration
RAM	2 GB 1066 DDR3L
Processor	Intel Atom E3825: 1.33 GHz, 2 cores

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
