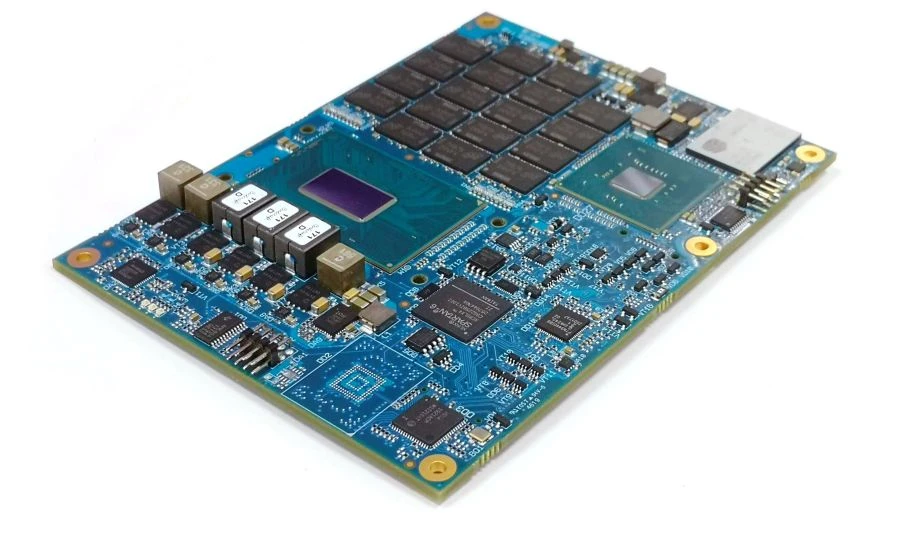

Processor Module CPC1304-04 COM Express Basic for Embedded Systems

Available for Import

Processor Module CPC1304-04 for Embedded Systems Integration and Compatibility

Mounted Circuit Boards

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Processor module CPC1304-03 (IMES.467444.115-02) Processor module CPC1304-02 (IMES.467444.115-01)

Description

CPC1304 processor module IMEC.467444.115 (hereinafter referred to as the product), made in COM Express Basic standard, provides developers of embedded systems with such features as compatibility with x86 family, the most up-to-date set of functionalities based on PCI Express 3.0, SATA 3.0, USB 3.0, DisplayPort 1.2 interfaces, high performance of the latest generation of Intel Xeon E processors with integrated graphics core. Com Express Basic form factor is characterised by small overall dimensions, standardised module height size, which allows for good module interchangeability. The main area of application of the product is its use as a computing core in the construction of real-time systems, on-board systems, security and communications, production control, high-speed data acquisition and for other demanding applications designed to work in harsh operating conditions.

Specifications

Operating temperature

0 C to plus 70 C

Nutrition

+12 V from COM Express connector; +5 V_STBY from COM Express connector (optional)

Software compatibility with OS

Linux Debian 10; Microsoft Windows 10 IoT Enterprise 64bit; Neutrino SAMGs

Console I/O

Via serial ports (COM1 / COM2)

Monitor 7 power supply voltages, PCB temperature monitor

Armoured glass

Watchdog timer

Armoured glass

Accumulator

SATA SSD 32GB iSLC

Real time clock (powered by "RTC battery" port)

Armoured glass

COM Express Type 6 connector

1 PCIe x16 GEN3, 8 GT/s; 8 PCIe x1 GEN3, 8 GT/s; 8 USB 2.0 ports; 4 USB 3.0 ports; 4 SATA III 6 Gbps ports; "LAN 0" port: Gbit Ethernet Intel 210; SPI (External Boot) port; "LVDS Channel" port: LVDS Dual Channel 24 bit 1920x1200@60 Hz or port

FRAM 32 Kbyte (SPI port) for storing user data

Armoured glass

FLASH BIOS

1x128 MB SPI-Flash; System modifiability

RAM

DDR4-2666 SDRAM, ECC-enabled: 16GB; 64-bit data bus

Processor

Xeon E-2254ML 1.7 GHz 25W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
