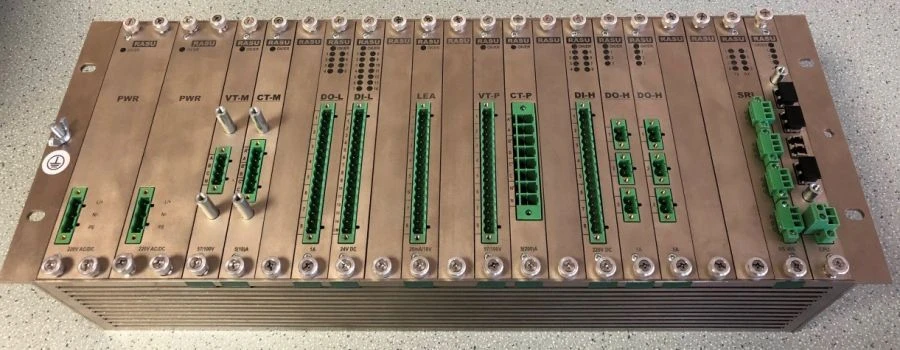

Process Bus Interface Device IEC 61850 (USSH) for Voltage and Current Measurement
Manufacturer:
RASU OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Process bus coupler according to IEC 61850 and its modules, designed to convert 57.7/100V voltage and 1/5A current measurements with 50 Hz frequency from the secondary windings of conventional type measuring transformers, the states of 220/24V binary inputs into digital data streams according to IEC 61850-9-2 (SV streams) and IEC 61850-8-1 (GOOSE messages), and transfer them over a redundant Ethernet 100Base-X interface to the higher level of the control system, for further use by digital relaying devices, ACS, AISC and other automated substation systems, as well as the reverse conversion of control signals from the relaying terminals and bay controller in the form of an effect on the output relays.
Specifications
Type of explosion protection
absent
Width
493 mm
Height
190 mm
Explosion protection
2nd grade
Color
Silver
Material of manufacture
Various
Housing material
D16AT
Degree of protection
IP52 for the front panel (except for connectors)
Temperature class
-40..50°?
Climatic version
UHL3.1
Type
Bus Coupling Device (BCD)
Depth
125 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
