Procedure Table SP-02-7N for Medical Use and Clinical Applications

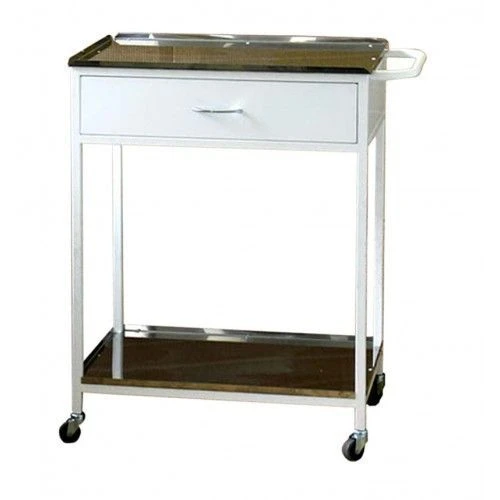

Procedure table. The construction consists of a frame and elements fixed on it by welding and rivets. On top of the table top is installed double flanging (ivy) height of 16mm, under it is a drawer on roller guides, the bottom of the table is installed shelf with flanging height of 16mm, there is a horizontal handle for movement.

The distance between the drawer and the shelf is 525mm. The internal size of the drawer is 560x356x76mm. Table top size 637x407mm, shelf size 632x392mm.

Evenly distributed load on the shelf, table top - 5kg. The table is mounted on imported rubberised wheels Ø50 mm. The frame of the table is made of 20x20 mm square profile pipe, the drawer is made of 1.0 mm thick sheet steel, powder polymer coating, white colour.

The table top and shelf are made of stainless steel AISI 304 1.0 mm thick. Supplied assembled and packed.
