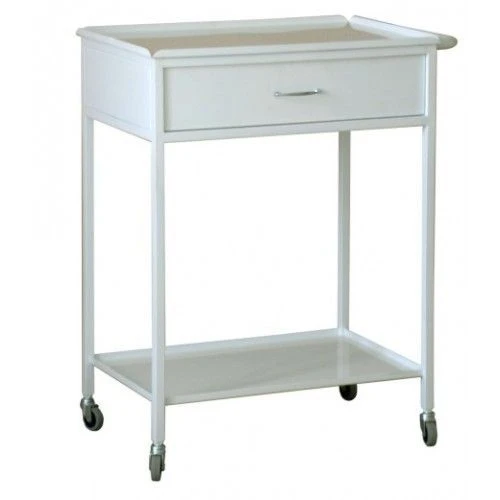

Procedure Table SP-02-7 for Medical Applications and Procedures

Procedure table. The construction consists of a frame and elements fixed on it by welding. The table top with 16mm high flanging is installed on top, under it there is a drawer on roller guides, a metal shelf with 16mm flanging is installed at the bottom of the table, there is a horizontal handle for moving.

The distance between the drawer and the shelf is 525mm. The internal size of the drawer is 560x356x76mm. Table top size 647x407mm, shelf size 612x372mm.

Evenly distributed load on the shelf, table top - 5kg. The table is mounted on imported rubberised wheels Ø50 mm. The frame of the table is made of 20x20 mm square profile pipe; the table top, shelf, drawer are made of 1.0 mm thick sheet steel.

Powder polymer coating, white colour. Delivered assembled and packed.
