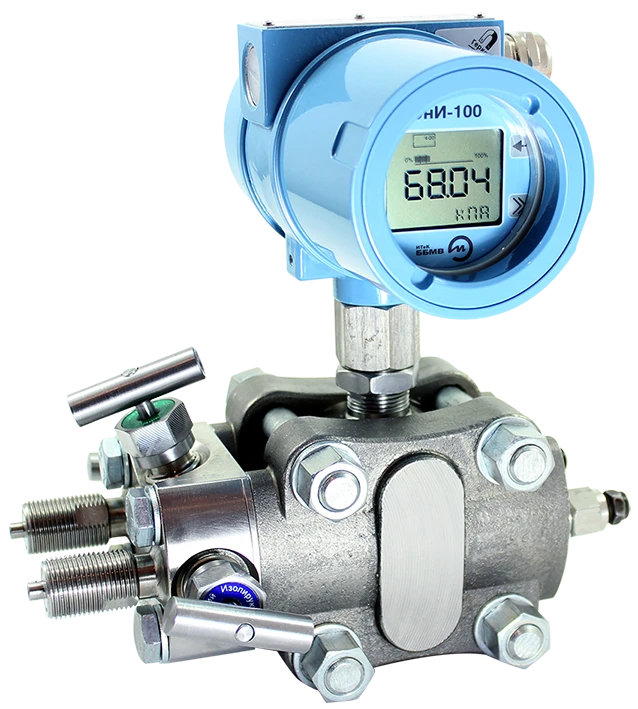

Pressure sensor ENI-100

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for continuous conversion of the measured pressure of steam, liquid and gas into a unified current output signal and (or) digital signal based on HART-protocol (optional).
Basic reduced error: 0,075%; 0,1%; 0,15%; 0,2%; 0,25%; 0,5%.
Measured pressure range: up to 100 MPa
Inspection interval: up to 5 years
Explosion protection: general industrial; intrinsically safe electric circuit, protection against dust ignition by shell; flameproof enclosure; combined protection.
Range adjustment depth: up to 1:50.
Output signal: 4...20 mA
Indication: backlit LCD (up to -40 °C), LED (-60 °C and below).
Degree of protection of sensors from dust and water: IP65, IP66, IP67.
Safety completeness level: SIL2, SIL 3.
Menu: Russian and English.
Continuous self-diagnosis.

Specifications

Ambient temperature -60...80 °C

Execution general industrial; intrinsically safe electric circuit, protection against dust ignition by shell; flameproof enclosure; combined protection.

Dustproof IP65, IP66, IP67.

Output signal, mA 4...20

Warranty period 3 a

Absolute pressure (YES), upper measuring limit 100 MPa

Overpressure (OD), upper limit of measurement 100 MPa

Overpressure-dissipation (OPD), upper measuring limit 16 MPa

Differential pressure (DP), upper measuring limit 16 MPa

Hydrostatic pressure (HP), upper measuring limit 250

Range reconfiguration depth 1:50

Basic reduced error 0.5 %

Climatic designs UHL4, UHL3.1, U1, UHL1

Alarm devices (optional) no

Electromagnetic compatibility (EMC) Class B according to GOST R 51318.22-2013

Inspection interval 5 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
