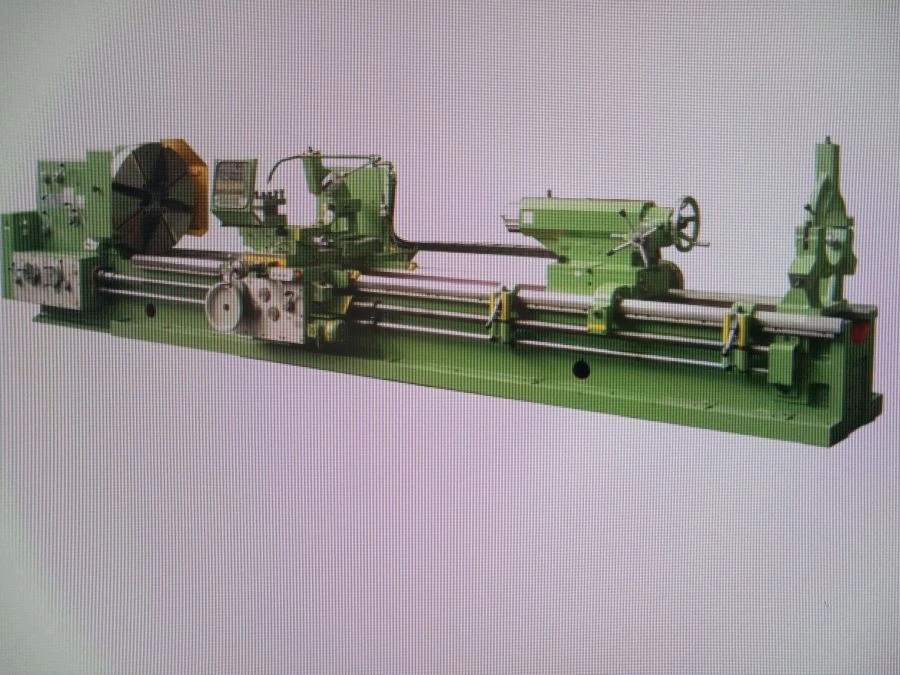

Precision Lathe Machine Model 1N65 for Metalworking

Available for Import

Precision Lathe Machine Model 1N65 for Versatile Metalworking Applications

Manual Metal Lathes

Manufacturer: RSZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The machine lathe - screw-cutting model 1N65 is designed for external turning, boring, drilling, taper machining, thread cutting: metric, modular, inch, pitch, multi-threading. Technical characteristics and rigidity of the machine allow to fully use the capabilities of high-speed and carbide tools in the processing of both ferrous and non-ferrous metals. For machining of conical surfaces and tapered threads the machine can be equipped with a cone ruler on special order. The machine design does not provide for the possibility of equipping with electronic control devices (CNC) on the contour on 2 or more axes.

Specifications

The largest diameter of the workpiece mounted above the bed, not less than

1400 mm

The largest diameter of the workpiece above the bed, not less than

1000 mm

The largest diameter of the workpiece to be machined above the slide, not less than

650 mm

Limit dimensions of the workpiece to be mounted and machined, not less than

1000 mm

Maximum length of the workpiece to be processed, not less than

1000 mm

Maximum mass of the workpiece to be installed

8000 kg

Height of the tool to be mounted

32 mm

Total power of electric motors installed on the machine tool

23,68 kW

Machine dimensions

2200 mm

Machine weight

9850 mm

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
