Description

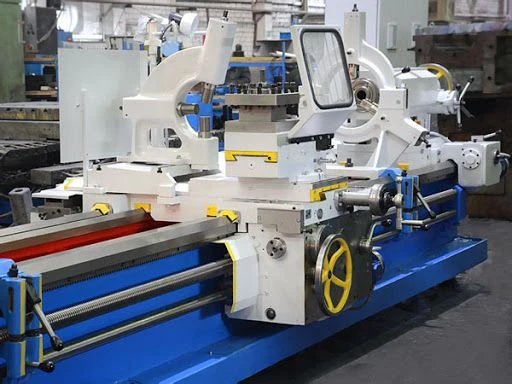

The lathe-cutting screw-cutting model 1N65 and its modifications produced by LLC "Ryazan Machine-Tool Builder", Ryazan, Russia, is designed for the production of all turning operations, including turning cones and cutting threads - metric, modular, inch.
Type of climatic execution UHL4 according to GOST 15150-69.
The accuracy class of the machine is H according to GOST 8-82.

Specifications

Type of product according to PP RF 616

Screw-cutting lathes (universal)

Above the caliper

650 mm

The largest diameter of the workpiece to be mounted and machined.

1000 mm

Diameter of the cylindrical bore in the spindle

128 mm

Front headstock spindle end according to GOST 12595-85

2-15?

Spindle speed limits, rpm

5...500

Limits of working feeds of caliper: longitudinal, mm/rev

0,06…2,42

Main drive power

22 kW

Pitch, pitch dia.

96...1

Modular, modular

0,5...24

Inches, threads/inch

24…1/4

Cutter slides, mm/rev

0,022...0,88

Transverse, mm/rev

0,022…0,88

Thread cutting steps: metric threads

1...96 mm

Number of spindle speed steps

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
