Available for ImportPrecision Lathe and Thread Cutting Machine TV-7M for Efficient Metalworking
Manufacturer:KOMTECH-PLUS CJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

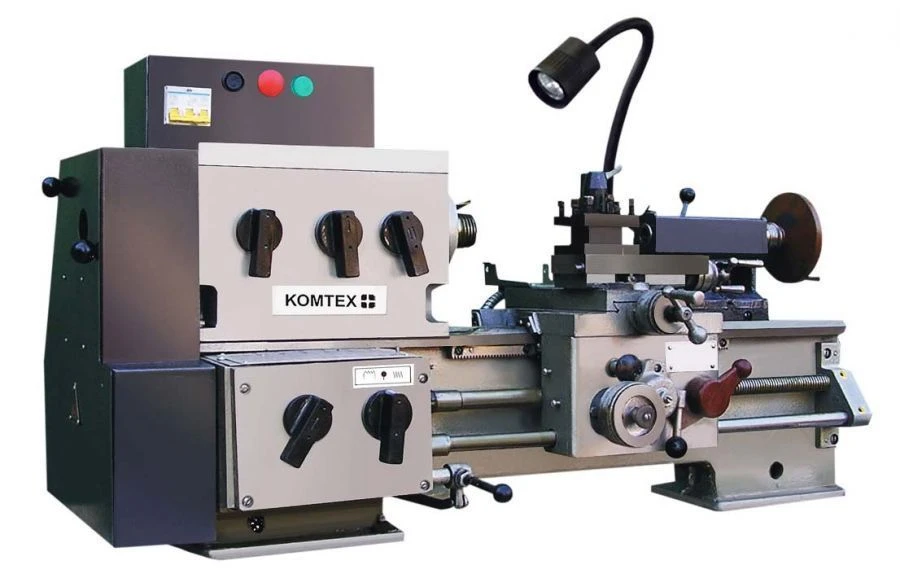

TV-7M lathe and screw-cutting machine
Specifications
Type of product according to PP RF 616
Universal lathes and screw-cutting machines, with CNC, CNC)
Length
1144 mm
Width
585 mm
Height
735 mm
Maximum diameter of the workpiece to be machined above the bed
220 mm
Maximum number of tools in the machine
4 pcs
Overall width
585 mm
OKP code
381160
Accuracy class according to GOST 8-82
?
Max. tool width
16 mm
Overall length/depth
1144 mm
Cone in the tailstock spindle
morse 2
Z-axis travel
20 mm
Moving in the X axis
2 mm
Max. tool height
16 mm
Maximum diameter of the bar/spindle hole in the workpiece spindle
18 mm
Max. workpiece diameter
220 mm
Overall height
735 mm
Maximum diameter of the workpiece to be machined above the slide
100 mm
Maximum workpiece weight
43590
Workpiece length (range)
275 mm
Spindle drive power
750 W
Weight
220 kg
Number of spindle speeds
6
Rear headstock quill travel
65 mm
Mounting system to the tailstock quill
manual
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
