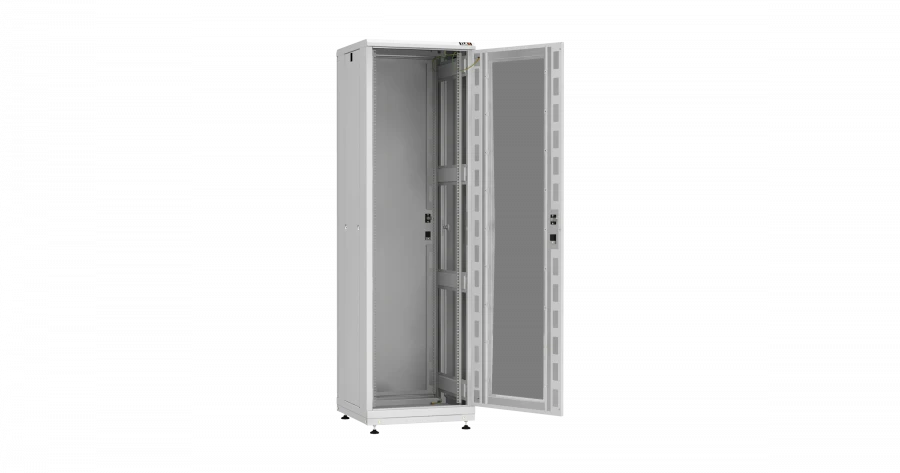

Practical II TFR Series Telecommunications Cabinet for Network and Communication Equipment

Metal Storage Cabinets

Manufacturer: TLK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Floor cabinet series "Practical II" TFR-R is designed for installation of network and communication, cross, active, passive, fibre-optic equipment inside office and industrial premises. The cabinet has two doors with an opening angle of more than 180 degrees and removable side panels, provides access for installation and maintenance of equipment from four sides. The presence of spring hinges at the doors allows you to quickly change the opening from left to right.

To ensure forced ventilation, the ventilation openings are adapted for installation of TLK fan units for 2, 4 and 6 fans. Cable entry and exit is realised through cable gland openings located in the base and in the ceiling panel. The cabinet is made in the 482.6 mm GOST 28601-90 (19-inch IEC 297 standard).

Specifications

Depth

1000 mm

Type of product according to PP RF 616

Metal cabinets other

Type of accommodation

Floor

Maximum distributed load

800 kg

Frame type

collapsible

Height

945...2234 mm

Width

800 mm

Color

Light gray (RAL 7035), Black (RAL 9005)

Assignment

Telecommunication floor cabinet

Weight

58.2...140.6 kg

Material

Cold-rolled steel

Degree of protection

IP20

Type of floor support

Adjustable supports; castors

Availability of fasteners to the support (pole)

Type of front door(s)

Single leaf door. With filling: metal, glass, perforation.

Type of rear door(s)

Single leaf door. With filling: metal, glass, perforation.

Height, U

18;24;33;42;47

Usable depth

910 mm

Type of side panels

Detachable, lockable, single. Filling: metal.

Type of door lock

Single-point locking locks

Front door material

Cold rolled steel 1mm

Rear door material

Cold rolled steel 1mm

Side panel material

Cold rolled steel 1mm

Frame material

Cold-rolled steel 1.5 mm

Material of mounting profiles

Galvanised steel 1.5mm

Type of coloring

Powder-coated, impact-resistant, polymer-epoxy coating

Glass

Tempered, tinted in mass (5%), 4 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
