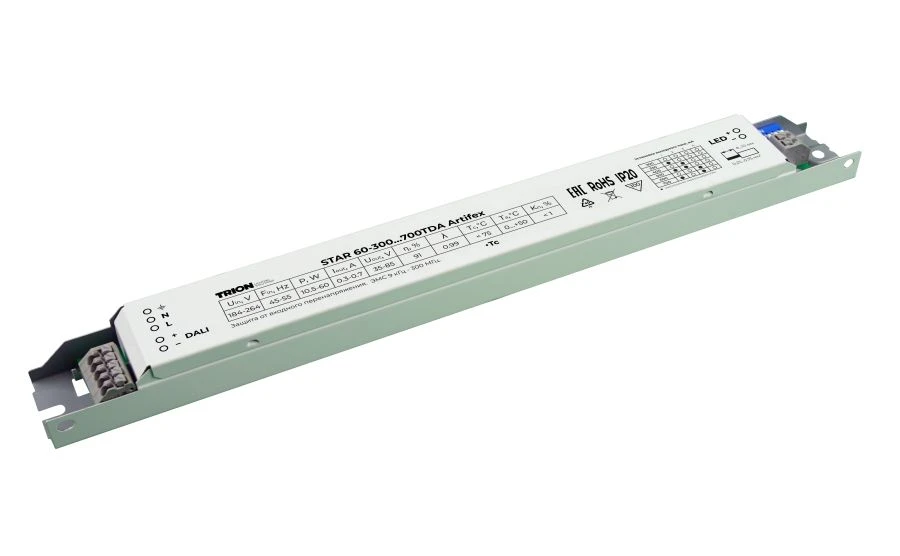

Power supply STAR 60-300...700TDA Artifex

Electronic Lighting Power Supplies

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The power supply STAR 60-300...700TDA Artifex is designed for implementation as part of lighting control systems based on DALI and DALI 2 protocol. The key task is to provide comfortable lighting and energy-saving lighting by changing the brightness level in manual, automatic or scenario mode. Reliability of STAR 60-300...700TDA Artifex is ensured by quality design, use of unified components and availability of key protections such as: input overvoltage protection, short-circuit protection, load open circuit protection, thermal protection. The source is galvanically isolated.

Specifications

Current selection function DIP switch

Enclosure protection class according to GOST 14254 (IEC 60529) IP20

Light output ripples 1 %

Input power range 12...66 W

Input voltage range 184...264 V

Galvanic isolation ~1.5 kV 50 Hz

Resistance to high energy microsecond pulses (L-N / L-PE, N-PE) 1...2 kV

Thermal protection 100 °C

Ambient temperature (operating) 0...50 °C

Warranty period of operation 5 a

Estimated time to failure 50000

Overall dimensions, L*W*H 281 x 30 x 22.5 mm

Weight 230 g

Electrical safety class 1

Electromagnetic compatibility Conforms to the requirements of ?? ?? 020/2011 "Electromagnetic compatibility of technical means"

EFFICIENCY 91 %

Output voltage range 35...85 V

Output power range 10.5...60 W

Output current 0.3...0.7 A

Protection against input overvoltage 295...420 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
