Power supply STAR 35-350T EnergyPr?

LED Power Supplies

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

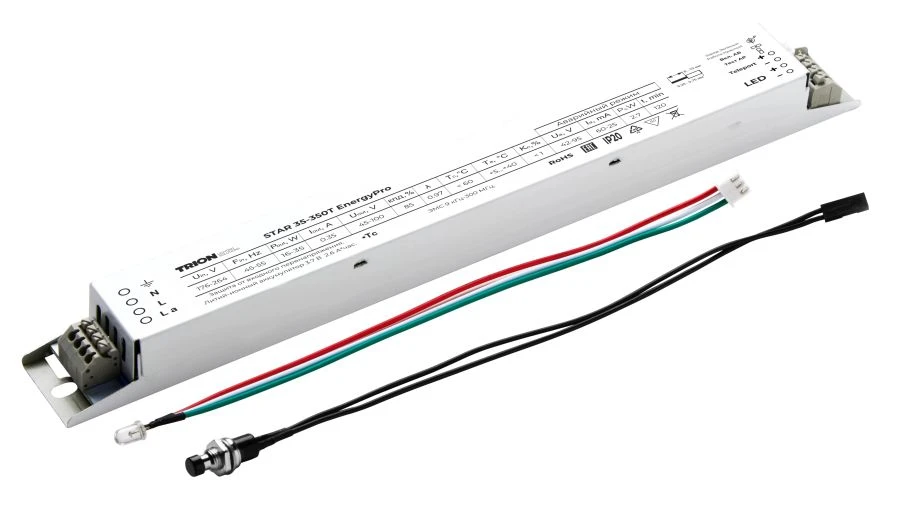

Integrated emergency power supply unit STAR35-350TEn?rgyPr? is designed for realisation of working and emergency lighting on the basis of special LED luminaires with output power up to 35W and output current of 350mA. It is designed for operation in networks with voltage 176-264V. The key purpose of the BAP - to provide working lighting in normal mode, and emergency lighting for 2 hours in case of failure of the working network (abnormal situation).

Specifications

Connection type Quick-clamping terminal blocks

Galvanic isolation ~1.5 kV 50 Hz

Electrical safety class 1

Electromagnetic compatibility Conforms to the requirements of TR EEU 020/2011 "Electromagnetic compatibility of technical means"

Гарантийный срок эксплуатации на аккумулятор 2 years

Warranty period of driver operation 5 years

Weight, g (not more) 280

Light flux ripples, % less than 1

Output voltage (range), V 45-100 ?

Output power (range), W 16-35

EFFICIENCY, % 86

Overall dimensions, mm 285x30x25

Degree of enclosure protection IP20 according to GOST 14254 (IEC 60529)

Operating temperature, C +5 ... +40

Thermal protection, C 60

MTBF, hours 50 000

Input overvoltage protection, V 295-420

Resistance to high energy microsecond pulses 1 kV (L-N), 2 kV (L-PE, N-PE)

Input power (range), W 18-41

Input voltage range, V 176-264 ?

Output current, mA 350

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
