Available for Import
Power shielded cable with PVC insulation 1kV VVGE 3x35
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

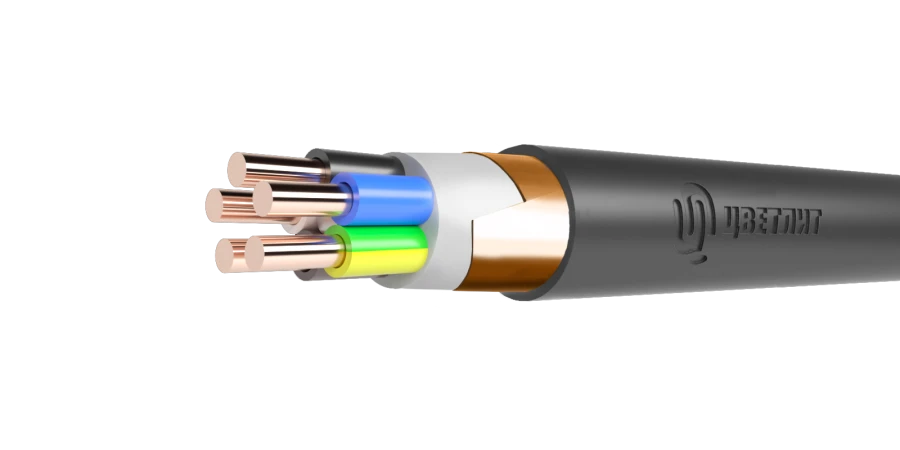

Cable with copper single-wire or multi-conductor cores, with insulation and sheath made of PVC plasticate. For laying single cable lines in dry and damp industrial premises, on special cable racks, in blockades, as well as for power supply of electrical installations in electrical circuits where additional protection is required, preventing the spread of electromagnetic fields of the cable, as well as protection from external interference.
Specifications
Mark
VVGE
Core material
Copper
Insulation material
PVC plasticate
Sheath material
PVC plasticate
Filler material
interfacial space filler made of PVC plasticate
Screen material
copper bands
Climatized version
UHL
Nominal voltage
1000 V
Ambient temperature during cable operation
OT -50 to +50 °C
Number of cores
3 pc
Core cross section
Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording mm2
Cable outer diameter
24.7 mm
Calculated weight
1360 kg
Minimum permissible bending radius for installation
7.5 cable diameters
Fire hazard class according to GOST31565
?1.8.2.5.4
Longest permissible operating temperature of conductors
70 °C
Maximum permissible heating temperature of cable cores in overload mode
Flat grinder, Specialised grinder °C
Maximum heating temperature of cable cores at short circuit
160 °C
Maximum heating temperature of cable cores under the condition of non-fire in case of short circuit
350 °C
Twisting
insulated conductors twisted into a core
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
