Power cables with plastic insulation for voltage up to 1 kV PvBShp

Copper Power Cables 1kV

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

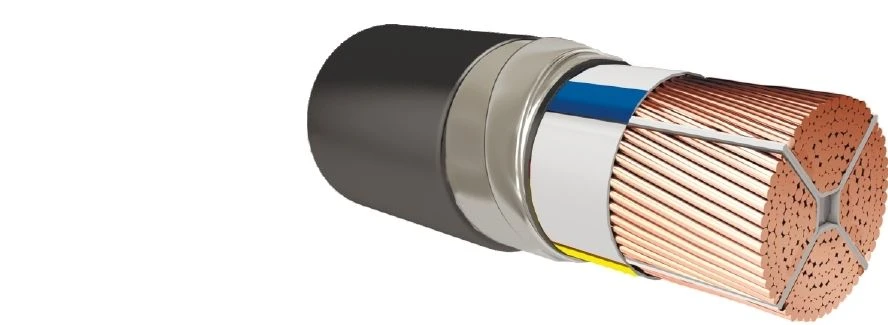

Cable round with copper conductors, with insulation made of cross-linked polyethylene, with armour made of galvanised steel tapes and protective hose made of polyethylene. The cable is manufactured for operation in areas with temperate, cold and tropical climates. The cable is designed for operation on land, rivers and lakes at an altitude of up to 4 300 m above sea level. It is used in the air if there is no danger of mechanical damage during operation; for laying in dry or damp premises (tunnels), channels, cable half floors; for laying in the ground; in mines, collectors, industrial premises, partially flooded structures in the presence of environment with weak, medium and high corrosivity; for laying in fire-hazardous premises; for laying on special cable racks, on bridges and in blocks.

Specifications

Mark PvBShShv

Design Conducting core, insulation, sheath, armour, protective hose

Sheath material Polyvinylchloride plasticate of reduced fire hazard with low smoke and gas emission

Insulation material Cross-linked polyethylene with distinctive coloring

Cable shape Round

Core cross section 70;95;120;150;185;240 mm2

Number of cores 1,2,3,4,5 pc

Number of conductive cores 1,2,3,4,5 pc

Nominal cross-section of conductive cores 70;95;120;150;185;240 mm2

Number of wires in the core 19...37 pc

Laying and installation of cables without preheating is carried out at temperature at least -15 °C

Long-term permissible core heating temperature during operation No more than 70 °C

Short circuit duration No more than 5

Permissible heating temperature of cable cores in overload mode no more than 130 °C

Limit temperature of core heating under conditions of short circuit non-flammability No more than 400 °C

Test AC voltage of 50 Hz frequency at 1 kV 3,5 kV

Maximum AC voltage of frequency 50Hz at 0.66 kV 0,72 kV

Maximum AC voltage of frequency 50Hz at 1 kV 1,2 kV

Armor of two galvanized steel bands

Protective hose of cross-linked polyethylene

Size (Number of cores x Cross-section) 1x70 to 1x240; 2x70 to 2x240; 3x70 to 3x240; 4x70 to 4x240; 5x70 to 5x150

Test alternating voltage with frequency 50 Hz at 0.66 kV 3 kV

Operating temperature range -50...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
