Power cables with plastic insulation for voltage up to 1 kV AVVG-Png(A)

Aluminium Power Cables 1kV

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

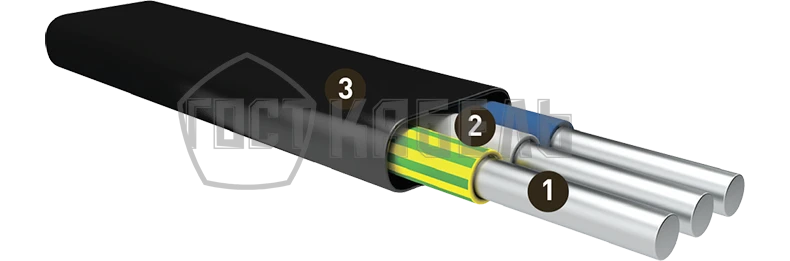

Flat cable with aluminium conductors, with insulation and outer jacket made of PVC plasticate, not spreading combustion in category A. The cable is manufactured for operation in areas with temperate, cold and tropical climates. The cable is designed for operation on land, rivers and lakes at an altitude of up to 4 300 m above sea level. It is used in air if there is no danger of mechanical damage during operation; for laying in dry or damp premises (tunnels), channels, cable half floors; in mines, collectors, industrial premises, partially flooded constructions in the presence of environment with weak, medium and high corrosivity; for laying on special cable trestles, on bridges and in blocks

Specifications

Mark AVVG-Png(A)

Core material Aluminum

Insulation material Polyvinyl chloride plasticate with distinctive coloring

Sheath material polyvinyl chloride plasticate of reduced flammability

Calculated weight 1 kg

Number of cores 2,3 pc

Core cross section 2,5;4;6;10 mm2

Nominal cross section of phase conductors 2,5;4;6;10 mm2

Laying and installation of cables without preheating is carried out at temperature at least -15 °C

Long-term permissible core heating temperature during operation No more than 70 °C

Short circuit duration No more than 5

Permissible heating temperature of cable cores in overload mode Not more than 90 °C

Limit temperature of core heating under conditions of short circuit non-flammability no more than 350 °C

Test AC voltage of 50 Hz frequency at 1 kV 3,5 kV

Maximum AC voltage of frequency 50Hz at 0.66 kV 0,72 kV

Maximum AC voltage of frequency 50Hz at 1 kV 1,2 kV

Filling material not provided for

Insulation material of phase conductors Polyvinyl chloride plasticate with distinctive coloring

Number of phase conductors 2.3 pc

Test alternating voltage with frequency 50 Hz at 0.66 kV 3 kV

Climatized version -50...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
