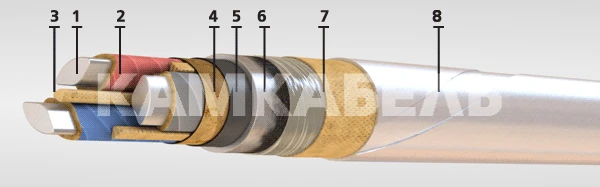

Power cable with aluminium core AABNLG-1 3x240

Available for Import

Power cable with aluminium core AABNLG-1 3x240

Aluminium Power Cables 1kV

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Power cable with aluminium core AABLG-1 1x300 Power cable with aluminium core AABNLG-1 3x120 Power cable with aluminium core AABNLG-1 4x185(ozh) Power cable with aluminium core AABNLG-1 3x185(ozh) Power cable with aluminium core AABLG-1 1x500+2?1,5

Power cable with aluminium core AABLG-1 1x625+2?1,5 Power cable with aluminium core AABLG-1 3?185+1?95(ozh) Power cable with aluminium core AABLG-1 3x120+1x70 Power cable with aluminium core AABNLG-1 3?150 Power cable with aluminium core AABLG-1 3x95 Power cable with aluminium core AABNLG-1 4x120 Power cable with aluminium core AABLG-1 3?150 Power cable with aluminium core AABNLG-1 3x185 Power cable with aluminium core AABNLG-1 4x240(ozh) Power cable with aluminium core AABLG-1 3x150+1x70(ozh) Power cable with aluminium core AABLG-1 3x185 Power cable with aluminium core AABLG-1 1x240 Power cable with aluminium core AABLG-1 4x120 Power cable with aluminium core AABLG-1 3x150(ozh) Power cable with aluminium core AABLG-1 3x240+1x120(ozh) Power cable with aluminium core AABLG-1 3x240 Power cable with aluminium core AABLG-1 4x185 Power cable with aluminium core AABLG-1 4x150(ozh) Power cable with aluminium core AABNLG-1 3x95 Power cable with aluminium core AABLG-1 3x70+1x35 Power cable with aluminium core AABNLG-1 3?95(ozh) Power cable with aluminium core AABNLG-1 4x95(ozh) Power cable with aluminium core AABLG-1 4x95 Power cable with aluminium core AABLG-1 4x240 Power cable with aluminium core AABLG-1 3x95+1x50 3 95??² 1KV Power cable with aluminium core AABLG-1 1x400 Power cable with aluminium core AABLG-1 3x150+1x70 Power cable with aluminium core AABLG-1 4x150 Power cable with aluminium core AABLG-1 1x300+2?1,5 Power cable with aluminium core AABLG-1 3x95(ozh) Power cable with aluminium core AABLG-1 3x95+1x50(ozh) Power cable with aluminium core AABLG-1 4x120(ozh) Power cable with aluminium core AABLG-1 3x240+1x120 Power cable with aluminium core AABLG-1 1x240+2x1,5 Power cable with aluminium core AABLG-1 4x185(ozh) Power cable with aluminium core AABNLG-1 4x150 Power cable with aluminium core AABLG-1 1x500 Power cable with aluminium core AABLG-1 4x70 Power cable with aluminium core AABNLG-1 4x70(ozh) Power cable with aluminium core AABNLG-1 3x240(ozh) Power cable with aluminium core AABLG-1 1x400+2?1,5 Power cable with aluminium core AABLG-1 4x70(ozh) Power cable with aluminium core AABLG-1 1x800+2?1,5 Power cable with aluminium core AABNLG-1 4x70 Power cable with aluminium core AABLG-1 3x120+1x70(ozh) Power cable with aluminium core AABNLG-1 4x185

Description

Cables are designed for operation in the open air, in dry rooms, in damp, partially flooded rooms with weak, medium and high corrosive activity, as well as channels, cable half floors, mines, collectors, production facilities, on technological trestles and bridges, if there is a danger of mechanical damage during operation. Cables are used for laying in fire hazardous premises and explosion hazardous areas of class B-Ib, B-IIa. Cables do not spread combustion when laid in bundles (IEC 60332-3 category A). Cables with non-flowing insulating impregnation composition (CAABnlG) are designed for laying on vertical and inclined sections of routes without limitation of level difference. Cables can be used in places subject to vibration.

Specifications

Mark AABNLG-1

Number and cross section of conductors, pcs x mm2 3?240

Estimated cable weight, kg/km 4092

Outer diameter 47.9 mm

Rated DC voltage 2.5 kV

Rated AC voltage with frequency 50 Hz 1 kV

Operating temperature range -50...50 °C

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
