Available for Import

Power cable Pv... copper with SPE insulation, armoured in PVC ng(A)-LS sheath, PvBVng(A)-LS

Copper Core Power Cables

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Power cable Pv... copper with SPE insulation, armoured in PVC sheath, PvBV Power cable 2X... copper with SPE insulation, three-core, in BG ng(A)-HF sheath. ... copper with LDPE insulation, three-core, in Power cable Pv... copper with SPE insulation, armoured in PVC ng(A)-LS jacket Power cable 2X... copper with SPE insulation, three-core, in BG ng(A)-HF sheath. copper with LDPE insulation, three-core, in tap Power cable Pv... copper with SPE insulation, armoured in PE sheathing

Power cable 2X... copper with SPE insulation, three-core, in tape armour, PVC sheathing. copper with LDPE insulation, three-core Power cable Pv... copper with SPE insulation, armoured in PVC sheathing

Description

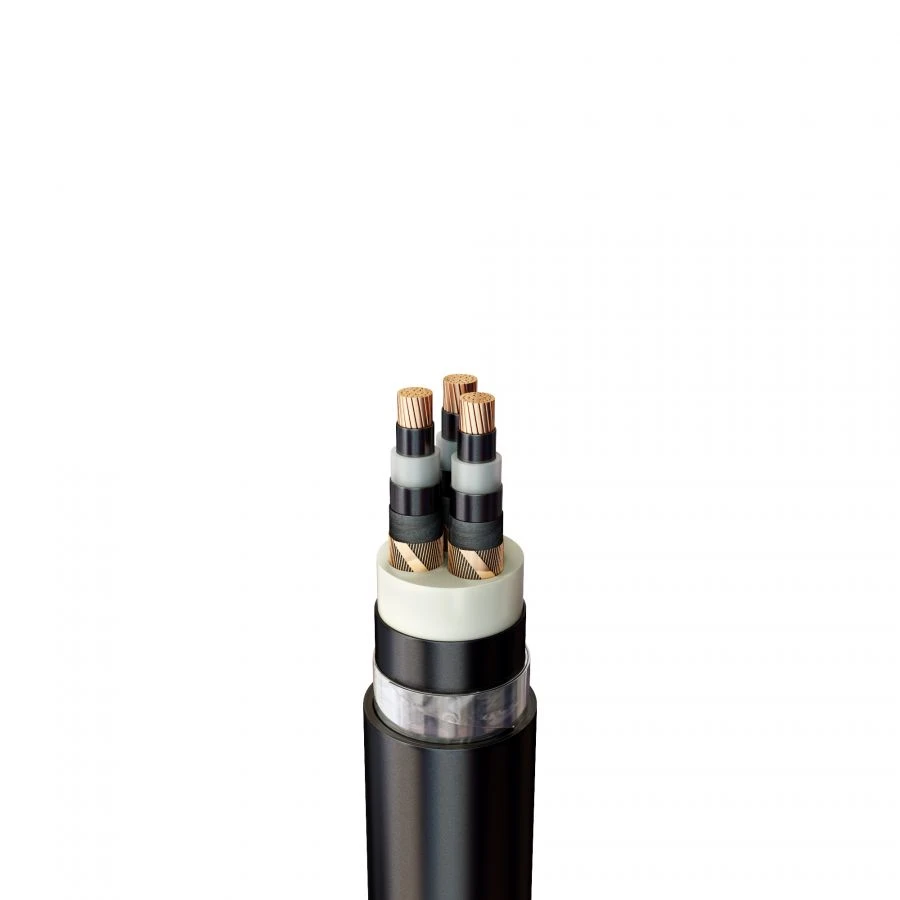

Power cables with cross-linked polyethylene insulation designed for transmission and distribution of electric energy in stationary installations for nominal alternating voltage of 6 kV with nominal frequency of 50 Hz for networks with grounded or isolated neutral. Type of climatic execution of cables - UHL.

Specifications

Number of cores 3 pc

Mark ???????(?)-LS

Material of conductive cores Copper

Insulation material of conductive cores Cross-linked polyethylene (LDPE / XLPE)

Availability of reservations Armoured glass

Armor type Galvanized steel strip armor (B)

Outer sheath material (if no armor) Polyvinylchloride plastic with reduced fire hazard and low smoke and gas emission (PVC LS / PVC LS)

Material of protective hose (if armor is available) Polyvinylchloride plastic with reduced fire hazard and low smoke and gas emission (PVC LS / PVC LS)

Availability of metal screen Armoured glass

Fire hazard class P1b.8.2.2.2.2.

Cable cross-sectional shape Round

Design of conductor core(s) Multi-wire round (mc)

Nominal cross-section of conductive cores 630 mm2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
