Available for Import

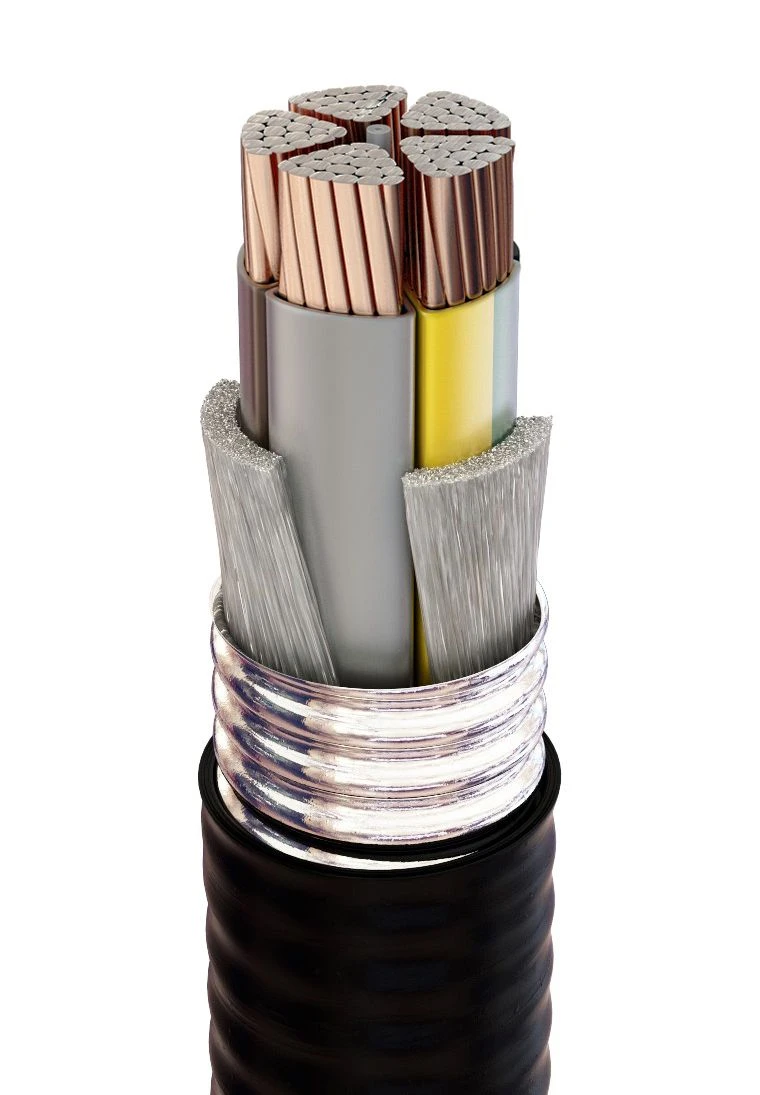

Power cable KAMAKS copper with EPR insulation in corrugated metal armour in PVC jacket

Copper Power Cables 1kV

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Power cable K9PV... copper with EPR insulation in corrugated metal armour in BG ng(A)-HF sheath, fire resistant Power cable K9RV... copper with EPR insulation in corrugated metal armour in PE sheathing Power cable KAMAKS copper with EPR insulation in corrugated metal armour in PE sheathing Power cable K9PV... copper with EPR insulation in corrugated metal armour in PVC ng(A) sheathing Power cable K9PV... copper with EPR insulation in corrugated metal armour in PVC sheathing

Power cable K9PV... copper with EPR insulation in corrugated metal armour in PVC ng(A)-LS sheathing

Description

Power cable with insulation made of high-modular ethylene propylene rubber, designed for transmission and distribution of electrical energy in stationary installations for rated alternating voltage of 0,6/1 rated frequency up to 50 Hz. The cable is manufactured for general industrial application and is intended for stationary laying in the air, in enclosed spaces, in the ground, in cable collectors for single laying, including in explosive zones when supplied to the domestic market and for export, including countries with tropical climate. Types of climatic execution of cables - UHL, XL and T.

Specifications

Rated AC voltage 1 kV

Material of conductive cores Copper

Insulation material of conductive cores High modulus ethylene propylene rubber (HEPR)

Availability of reservations Armoured glass

Armor type Corrugated metal

Outer sheath material (if no armor) Polyvinyl chloride plasticate (PVC / PVC)

Material of protective hose (if armor is available) Polyvinyl chloride plasticate (PVC / PVC)

Availability of metal screen no

Fire hazard class ?1.8.2.5.4

Cable cross-sectional shape Round

Design of conductor core(s) Single-wire round (ok); multiwire round (mc); multiwire sector (ms)

Nominal cross-section of conductive cores 1000 mm2

Number of conductive cores 1...5

Nominal cross-section of conductive cores 1000 mm2

Rated AC voltage 1 kV

Mark KAMAX SGV; KAMAX AGV; KAMAX SGSKV; KAMAX AGSQV; KAMAX AGSQV; KAMAX SGVM; KAMAX AGVM; KAMAX SGSKVM; KAMAX AGSQVM; KAMAX AGSQVM

Cable shape Round

Core material Copper

Insulation material High modulus ethylene propylene rubber (HEPR)

Sheath material Polyvinyl chloride plasticate (PVC / PVC)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
