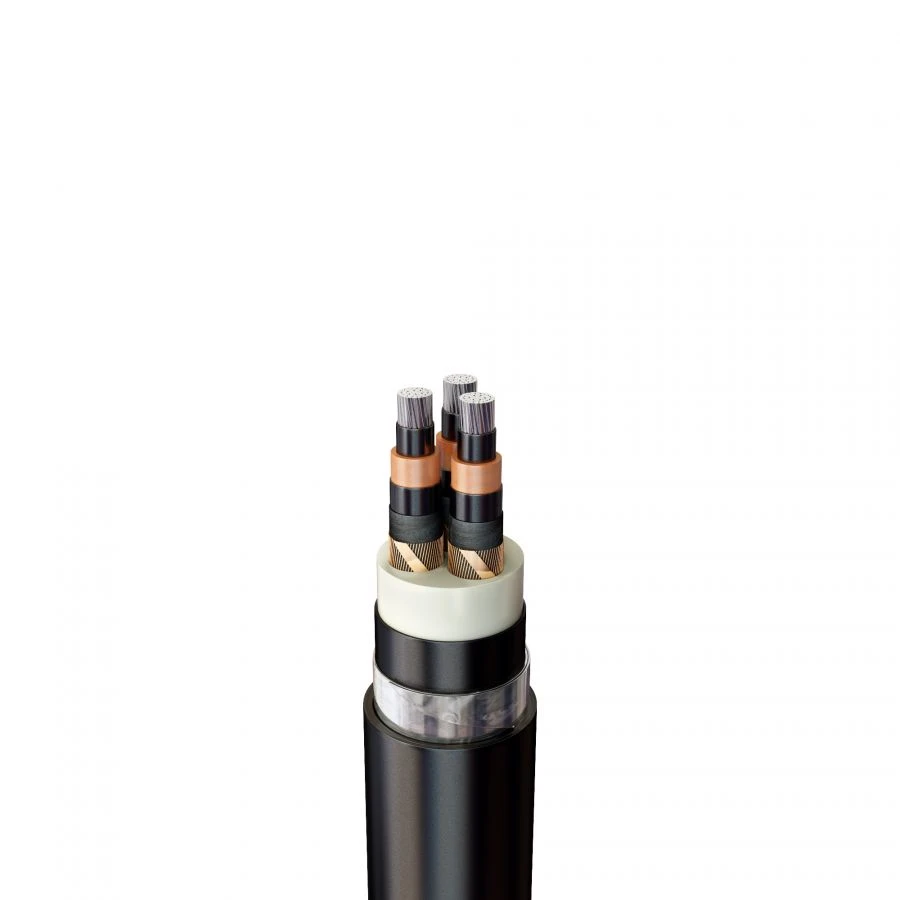

Power cable KA9RV.... 6-35kV aluminium with EPR insulation, armoured in BG ng(A)-HF jacket

Aluminium Core Power Cables

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Power cable APv... aluminium with SPE insulation, armoured in PE jacket Power cable APv... aluminium with SPE insulation, armoured in PVC sheathing Power cable KA9RV.... 6-35kV aluminium with EPR insulation, armoured in PE jacket

Description

Power cable with insulation made of high-modular ethylene propylene rubber, designed for transmission and distribution of electric energy in stationary installations for rated alternating voltage of 3,6/6(7,2), 6/10(12), 8,7/15(17,5), 12/20(24), 18/30(36), 20,3/35(42) kV with rated frequency up to 50 Hz for networks with grounded and insulated neutral. The cable is manufactured for general industrial application and is designed for stationary laying in the ground (trenches), in the air, in closed premises, in the ground, in cable collectors for group laying, including in explosive zones when supplied to the domestic market and for export, including countries with tropical climate. Types of climatic execution of cables - ???, ?? and ?

Specifications

Mark KA9RVAACPMng(A)-HF; KA9RVACPMng(A)-HF; KA9RVABPMng(A)-HF; KA9RVACBPMng(A)-HF; KA9RVACBPMng(A)-HF; KA9RVACPMng(A)-HF; KA9RVAKPng(A)-HF; KA9RVSBPMng(A)-HF; KA9RVSBPng(A)-HF; KA9RVSKBPMng(A)-HF; KA9RVSKBPng(A)-HF; KA9RVSKPMng(A)-HF; KA9RVSKPng(A)-HF; KA9RVSKP

Number of cores 3 pc

Rated AC voltage Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kV

Material of conductive cores Aluminum

Insulation material of conductive cores High modulus ethylene propylene rubber (HEPR)

Availability of reservations Armoured glass

Armor type Armor made of aluminum or aluminum alloy wires (AK); Armor made of round galvanized steel wires (SK); Armor made of aluminum or aluminum alloy bands (AB); Armor made of galvanized steel bands (SB)

Outer sheath material (if no armor) Halogen-free composition (HG / HF)

Material of protective hose (if armor is available) Halogen-free composition (HG / HF)

Availability of metal screen Armoured glass

Fire hazard class P1b.8.1.2.1.

Cable cross-sectional shape Round

Design of conductor core(s) Multi-wire round (mc)

Nominal cross-section of conductive cores 800 mm2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
