Available for Import

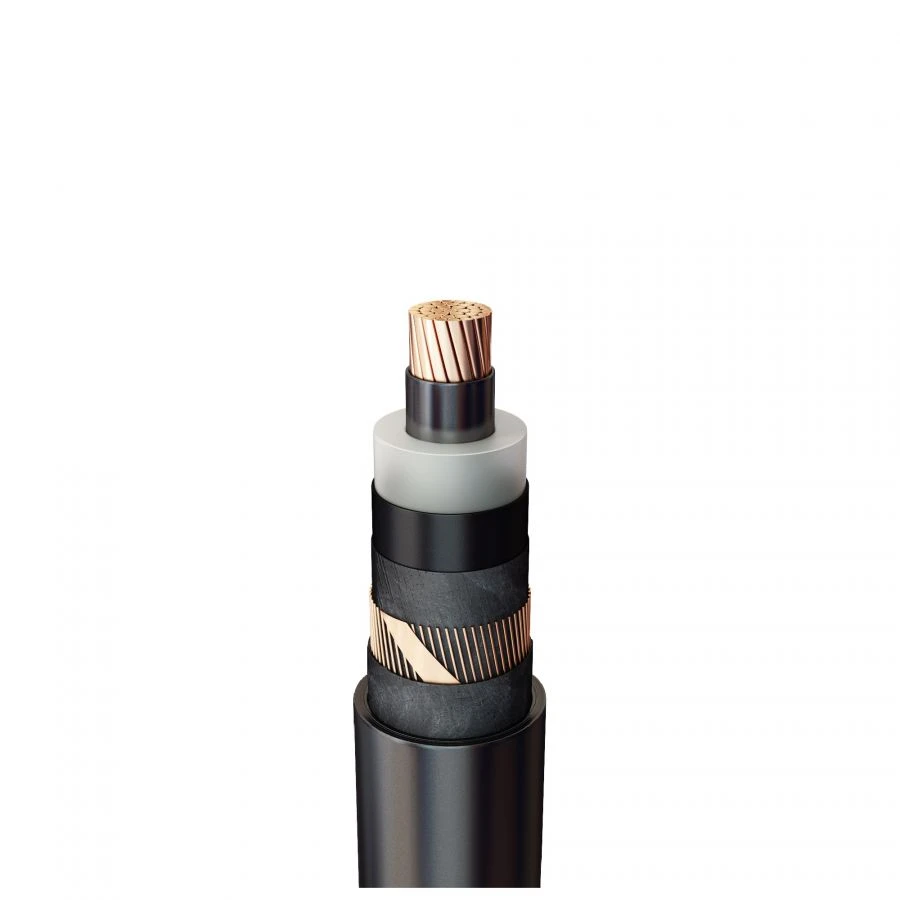

Power cable K9SPv... copper with SPE insulation, armoured in BG ng(A)-HF jacket

Copper Core Power Cables

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Power cable Pv... copper with LDPE insulation in PVC ng(A)-LS jacket Power cable Pv... copper with SPE insulation in PVC sheath, PvVV Power cable Pv... copper with LDPE insulation in PVC sheathing Power cable 2X... copper with SPE insulation, single-core, in tape armour, PE sheathing. ... copper with LDPE insulation, single Power cable 2X... copper with SPE insulation, single-core, in wire armour, PE sheathing. . copper with LDPE insulation, single-c

Power cable Pv... copper with SPE insulation in PVC ng(A)-LS sheath, PvVVng(A)-LS Power cable 2X... copper with LDPE insulation, single-core, in BG ng(A)-HF jacket

Description

Power cables with cross-linked polyethylene insulation of the trade mark "Uglichkabel K9SPv", "KAMAKS", designed for transmission and distribution of electrical energy in stationary installations for rated alternating voltage of 6, 10, 15, 20 and 35 kV nominal frequency of 50 Hz for networks with earthed or insulated neutral. Type of climatic execution of cables - ???, ? and ??

Specifications

Number of cores 3 pc

Mark K9SPvAPMng(A)-HF; K9SPvAPng(A)-HF; K9SPvMGPMng(A)-HF; K9SPvMGPMng(A)-HF; K9SPvMPMng(A)-HF; K9SPvMPng(A)-HF; K9SPvPMng(A)-HF; K9SPvPMng(A)-HF; K9SPvPng(A)-HF

Material of conductive cores Copper

Insulation material of conductive cores Cross-linked polyethylene (LDPE / XLPE)

Availability of reservations no

Outer sheath material (if no armor) Halogen-free composition (HG / HF)

Material of protective hose (if armor is available) Halogen-free composition (HG / HF)

Availability of metal screen Armoured glass

Fire hazard class P1b.8.1.2.1.

Cable cross-sectional shape Round

Design of conductor core(s) Multi-wire round (mc)

Nominal cross-section of conductive cores 630 mm2

Rated AC voltage 6; 10; 15; 20; 35 kV

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
