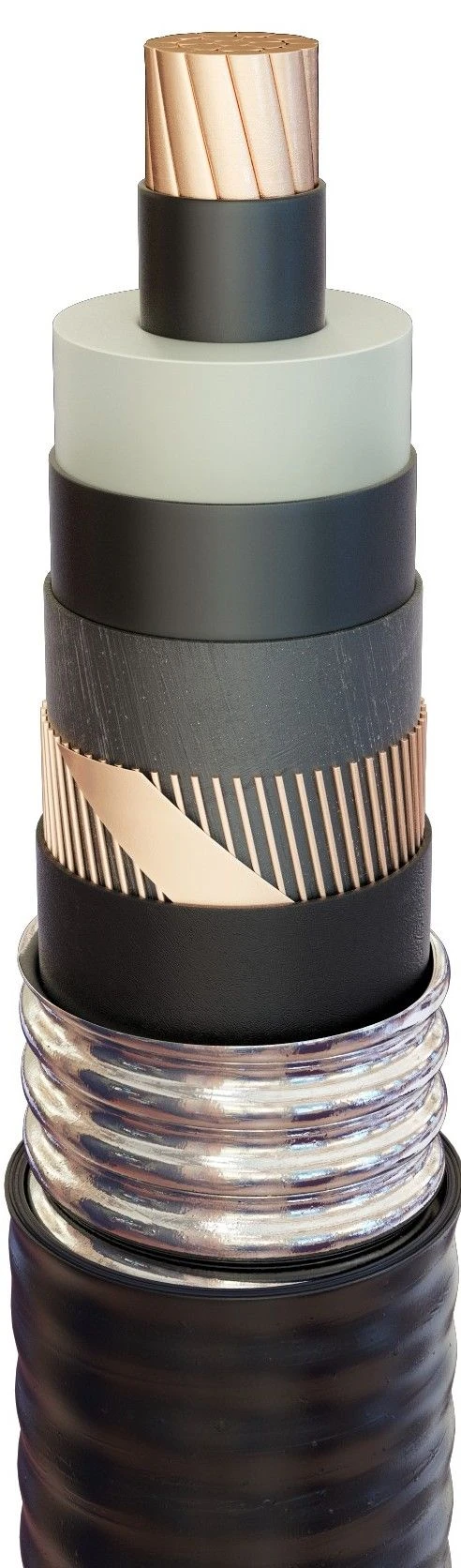

Power cable K9RV... 6-35kV copper with EPR insulation in BG ng(A)-HF sheath, fire resistant. 6-35kV copper with EPR insulation i

Copper Core Power Cables

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Power cable K9SPv... copper with SPE insulation in corrugated metal armour in PE jacket Power cable K9RV.... 6-35kV copper with EPR insulation in corrugated metal armour in PE jacket Power cable KAMAKS 6-35kV copper with EPR insulation in corrugated metal armour in BG ng(A)-HF jacket Power cable K9SPv... copper with SPE insulation in corrugated metal armour in PVC ng(A)-LS sheathing Power cable K9RV.... 6-35kV copper with EPR insulation in corrugated metal armour in PVC ng(A)-LS jacket

Power cable KAMAKS 6-35kV copper with EPR insulation in corrugated metal armour in PVC ng(A)-LS sheath, fireproof KAMAKS 6-35kV copper power cable with EPR insulation in corrugated metal armour in BG ng(A)-HF sheath, flame retardant

Description

Power cable with insulation made of high-modular ethylene propylene rubber, designed for transmission and distribution of electric energy in stationary installations for rated alternating voltage of 3,6/6(7,2), 6/10(12), 8,7/15(17,5), 12/20(24), 18/30(36), 20,3/35(42) kV with rated frequency up to 50 Hz for networks with grounded and insulated neutral. The cable is manufactured for general industrial application and is designed for stationary laying in the ground (trenches), in the air, in closed premises, in the ground, in cable collectors for group laying, including in explosive zones when supplied to the domestic market and for export, including countries with tropical climate. Types of climatic execution of cables - ???, ?? and ?

Specifications

Number of cores 3 pc

Mark K9RVAGACPMng(A)-HF; K9RVAGPMng(A)-HF; K9RVAGPMng(B)-HF; K9RVAGPng(A)-HF; K9RVAGPng(B)-HF; K9RVSGBPMng(A)-HF; K9RVSGBPng(A)-HF; K9RVSGBPng(B)-HF; K9RVSGPMng(A)-HF; K9RVSGPng(A)-HF; K9RVSGPng(B)-HF; K9RVSGSCPMng(A)-HF; K9RVSGSCPMng(B)-HF; K9RVAGSCPMng(A)-HF;

Rated AC voltage Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kV

Material of conductive cores Copper

Insulation material of conductive cores High modulus ethylene propylene rubber (HEPR)

Availability of reservations Armoured glass

Armor type Corrugated metal

Outer sheath material (if no armor) Halogen-free composition (HG / HF)

Material of protective hose (if armor is available) Halogen-free composition (HG / HF)

Availability of metal screen Armoured glass

Fire hazard class P1b.8.1.2.1.

Cable cross-sectional shape Round

Design of conductor core(s) Multi-wire round (mc)

Nominal cross-section of conductive cores 800 mm2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
