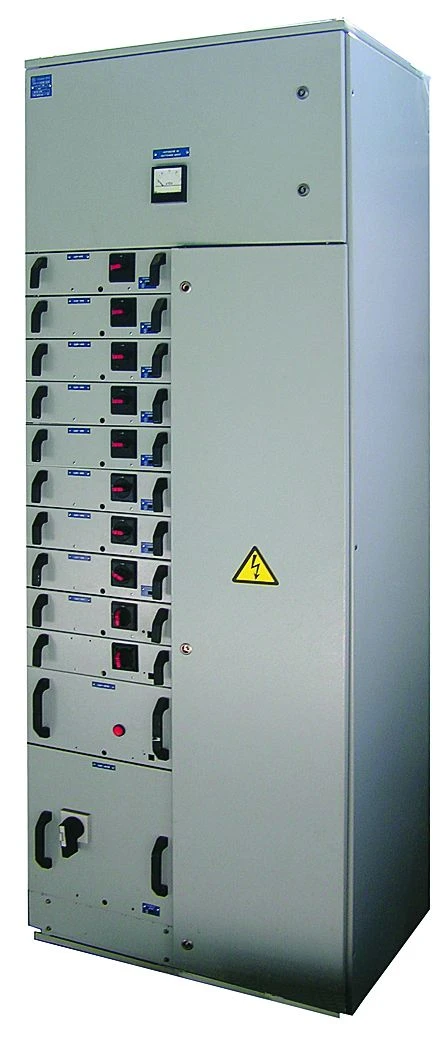

Power and Automation Cabinets (SHA Series) for 400V AC Networks

Low-Voltage Electrical Panels

Manufacturer: NEW ERA OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Cabinets series SHSA are designed to work in the AC network with a deaf-earthed neutral, rated voltage of 400 V, frequency 50 Hz, as part of a complete transformer substation auxiliary power 400, 630, 1000 or 1600 kVA, equipped with a full complex of ACS.
The complex includes ACS of technological and ACS of electrical parts of the power plant equipment.

Specifications

Rated voltage of switchgear

400 V

Rated currents of busbars, sectional or sectional circuit-breakers for operating and standby power inputs.

630; 1000; 1600; 2500 A

Effective value of short-circuit current on busbars

Up to 40000 A

Permissible short circuit surge current amplitude

up to 65000 A

Insulation resistance of power circuits at temperature 20 (± 5)°C and relative humidity up to 80%

At least 1 mOhm

Electrical insulation strength

2500 V

Protection degree of the shell according to GOST 14254

IP31

Climatic version according to GOST 15150-69.

Ambient temperature

+1°C to +40°C

Seismic resistance

7 points
