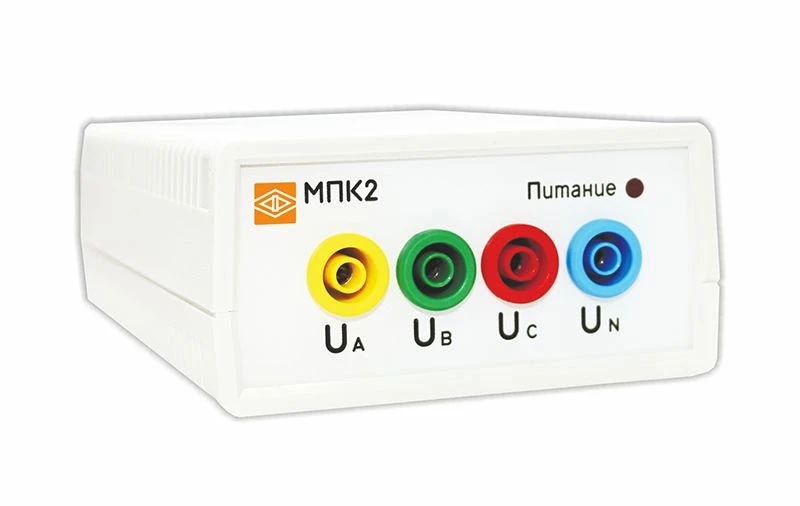

Portable power quality control device MPK2

Utility Consumption Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Portable devices MPK2 are designed to measure power quality parameters by voltage at the points of installation of substation power quality measuring devices, monitoring and control systems of power quality parameters with saving of measurement results according to specified algorithms in time intervals counted by internal clocks of real astronomical time. Calculation of power quality parameters is carried out according to class A in accordance with GOST 30804. 4. 30-2013, GOST 32144-2013. The device supports the IEC 61850-8-1 digital substation protocol (MMS). MPK2 is included in the State Register of SI of the Russian Federation No. 71684-18. Interverification interval is 10 years.

Specifications

RS485 communication interface Quantity: 0, 1; protocols: Modbus RTU, IEC 60870-5-101

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Overall dimensions, mm 95×53×175 (instrument), 229×85×275 (case)

Weight, kg, not more (without case, wires and clamps) 0,45

Input signal Voltage (phase/line): 57.7/100 V, 230/400 V, U/100; Frequency: 42.5 to 57.5 Hz

Measurement time 0.2 sec (voltage), 1 sec (frequency)

Measurements of power quality parameters S.k.s. of phase voltage of fundamental frequency; S.k.s. of line (interphase) voltage of fundamental frequency; Voltage S.k.s. deviation (by phase); S.k.s. of forward sequence voltage; S.k.s. of reverse sequence voltage and zero sequence voltage; Phase ang

Compliance of PCE measurements with the established Russian standards GOST 30804.4.30-2013 ; GOST 32144-2013 ; GOST 30804.4.7-2013 (Class I) ; GOST R 51317.4.15-2012 ; GOST R 8.655-2009 ; GOST R 8.689-2009

Galvanic isolation of input and output circuits, power supply circuits Got it

Ethernet communication interface Ethernet 10/100BASE-TX or Ethernet 100BASE-FX Number: 1; protocols: IEC 60870-5-104, IEC 61850-8-1(MMS)

Remote human-machine interface HTTP (embedded web interface)

Integration into the system of control of power quality indicators HTTP (integration into the software package for visualization and control of power quality indicators supplied with the device)

Time synchronization Running error of the built-in real-time clock is not more than ±1 sec. per day; in the absence of external power supply the clock can function for at least 15 days; NTP (RFC 5905)/PTP (IEEE `1588); IEC60870-5-104, IEC 60870-5-101 (p

Event logs System event log - up to 1000 events with automatic overwriting of earlier events when the maximum is reached; power quality event log - up to 100 thousand events with automatic overwriting of earlier events when the maximum is reached.

Storage of measurement results In internal non-volatile memory (csv format)

Electricity test protocol In accordance with GOST 32144-2013 for any time interval not less than 90 days (in pdf format)

Power supply voltage 220VU - from 90 to 264 V AC with frequency (50 ± 0.5) Hz or from 130 to 370 V DC.

Power consumption from the power supply circuit, not more 10 V?A (full power) when powered by 50 Hz single-phase AC power supply, 10 W when powered by DC power supply

Reprogramming Via the "Configurator" programme (RS485, Ethernet interfaces), via web interface.

Operating temperature range -40 to +55 º? (relative humidity 95 % at +35 º?)

Degree of protection IP41

Resistance to mechanical influences Group M7 according to GOST 30631-99

Electromagnetic compatibility In accordance with the requirements set forth in SISPR 22 for Class "A" equipment

Inspection interval 10 years

Warranty period of operation 24 mos.

Average service life, at least 25 years

Average MTBF 250000 ?

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
