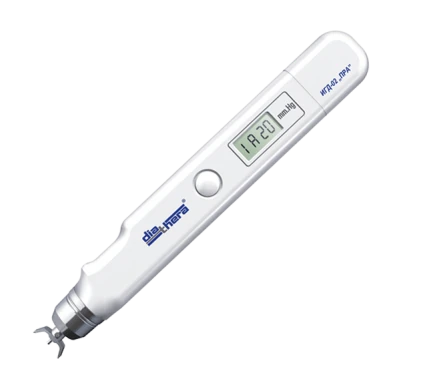

Portable intraocular pressure indicator IGD-02-PRA

The device is designed to measure tonometric IOP through the eyelid in the area of the sclera according to Maklakov with a load of 10 g. The principle of operation of the indicator IGD-02 is based on the processing of the acceleration function of the rod as a result of its free fall and interaction with the elastic surface of the eye through the eyelid - a dynamic (ballistic) method of dosed mechanical impact on the eye.
Measurement of tonometric IOP according to Maklakov at a load of 10 g.
Allowable deviation of the boundary value estimation (26 mmHg)
between normal and high pressure ± 2.0 mm Hg.
Time of one measurement, s, not more than 3
Power supply voltage, V 3
Battery type CR2032
Number of measurement cycles on one set of batteries, not less than 1500
Service life, years, not less than 5
Weight, g, not more than 89
Overall dimensions, mm, not more than 174 x 26 x 20
