SBG-PM-03 Sterkh Hydraulic Drilling Rig for Vertical Use

The portable drilling machine SBG-PM-03 "Sterkh" is a fully hydroficated drilling machine consisting of several portable modules.

The drilling machine is designed for drilling vertical, horizontal and inclined boreholes in rocks of I-XII categories of drillability, in extremely confined conditions, in existing buildings, basements, slopes, as well as in open areas. Despite its small size and weight, the machine has the best performance in its class: -torque 2650 Nm -feed force 2000 kg -Rotator feed stroke 1400-2200 mm -mass 570 kg

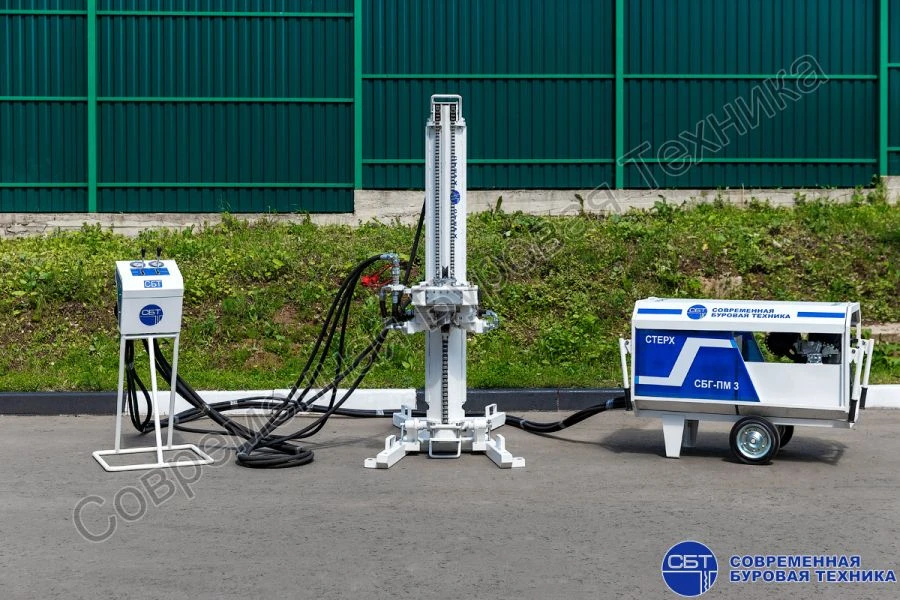

The machine can be disassembled into individual portable modules (mast, rotator, base, control panel, oil station) in 5 minutes without tools. The oil station is equipped with hinged handles and wheels for easy transport. Provides a feed stroke of the rotator 1400 mm with a working height limitation of 2 metres.
